T8
T8

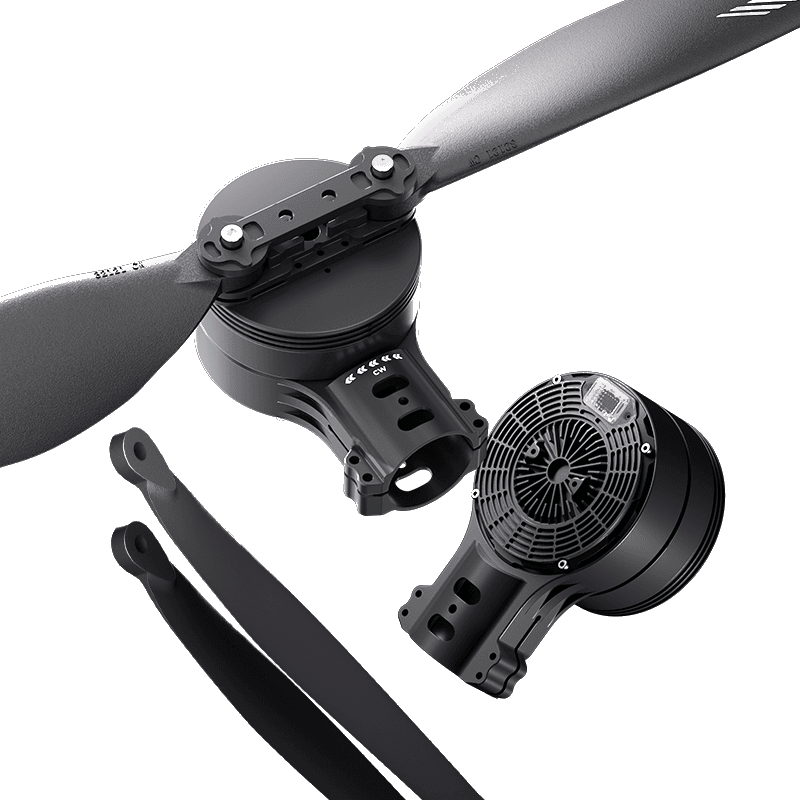

T8 integrated propulsion system, max thrust 16kg, recommended battery 14S, power assembly weight 900±10g.
KV
120KV
Battery
14S
Dimensions
92*38.5
Carbon Tube
40mm
Total Weight
900±10g
Features
Max Thrust: 16kg
Recommended Takeoff Weight: 7-7.5kg
Recommended Battery: 14S
Total Weight: 900±10g
Applicable carbon tube size: 40mm
Operating Temperature: -20~40°C

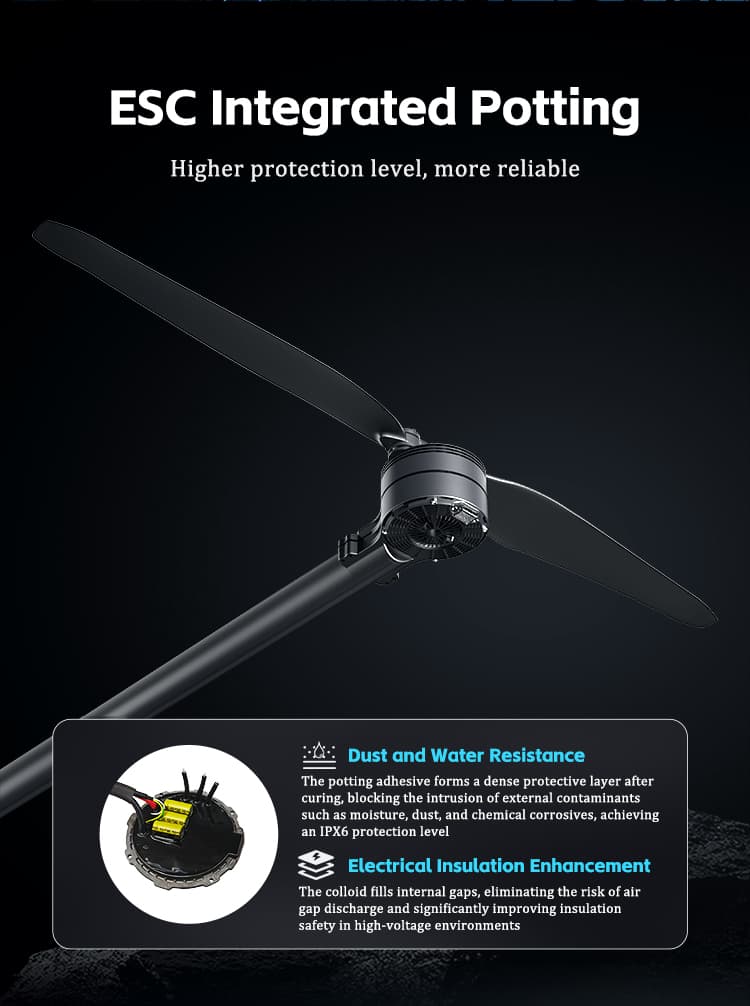

Ingress Protection: IPX6
Rated Input Power: 850W
Max Input Power: 3500W
Rated Thrust Efficiency: 8.5g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 20A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 120A（10s)

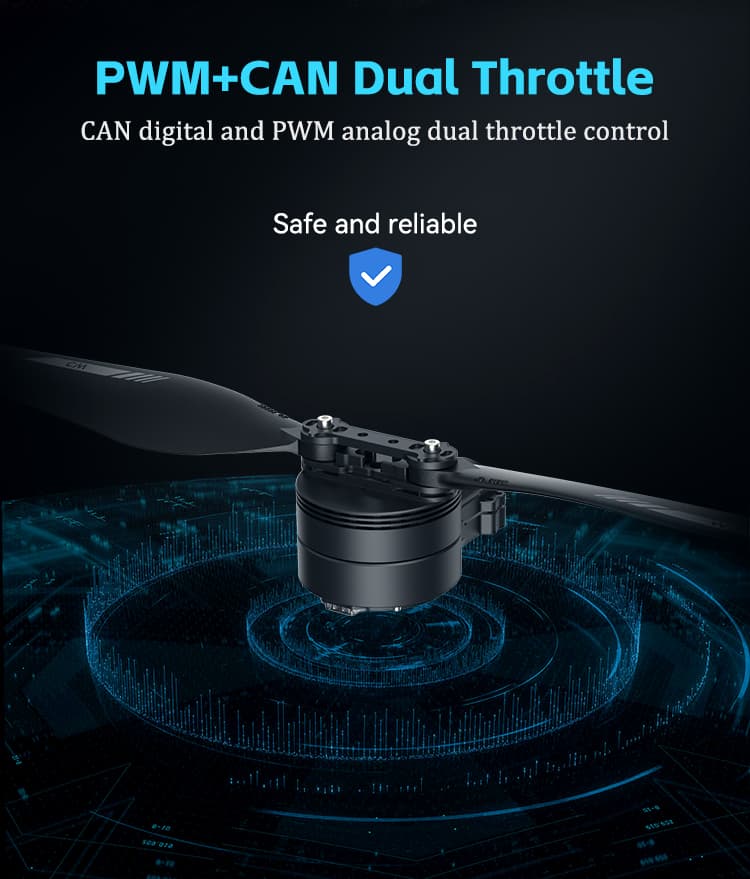

Communication interface: CAN
KV Rating: 120KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 222.62/249 .50g
Applications
AgricultureLogisticsIndustrial
