T10
T10

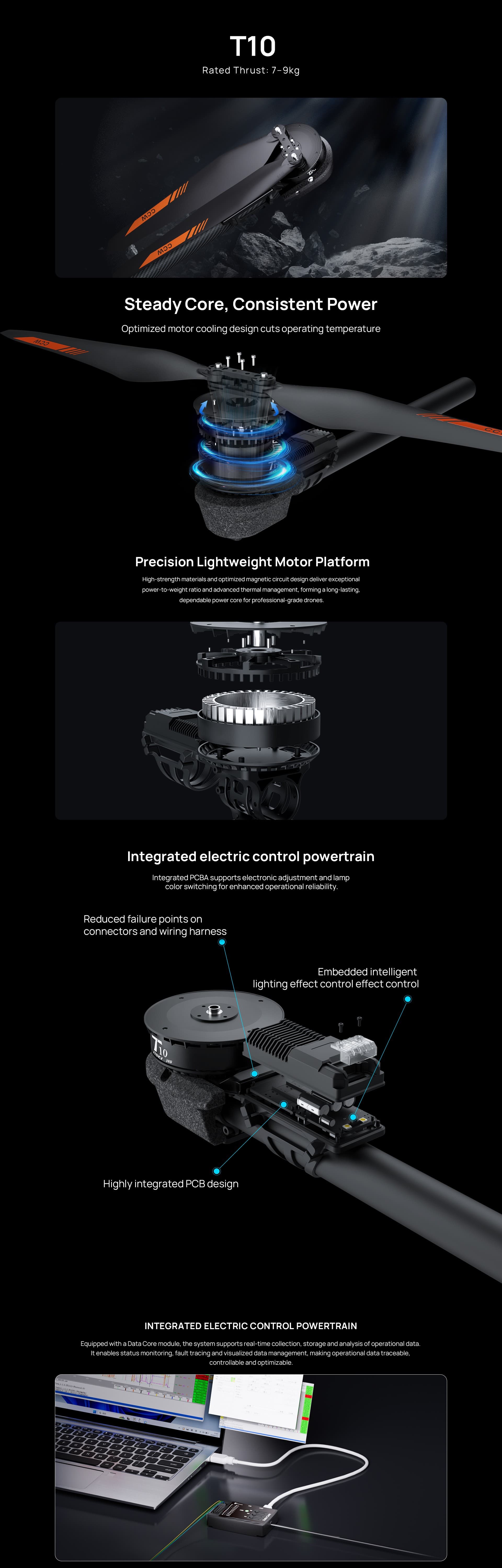

T10 integrated propulsion system, max thrust 19kg, recommended battery 14S, power assembly weight 1600±50g.
KV
110KV
Battery
14S
Dimensions
120*40
Carbon Tube
40mm
Total Weight
1600±50g
Features
Max Thrust: 19kg
Recommended Takeoff Weight: 7-9kg
Recommended Battery: 14S
Total Weight: 1600±50g
Applicable carbon tube size: 40mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 1200W
Max Input Power: 4300W
Rated Thrust Efficiency: 7.2g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 45A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 150A（10s)
Communication interface: CAN
KV Rating: 110KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 293.30g
Applications
AgricultureLogisticsIndustrial
