T10-PLUS
T10-PLUS

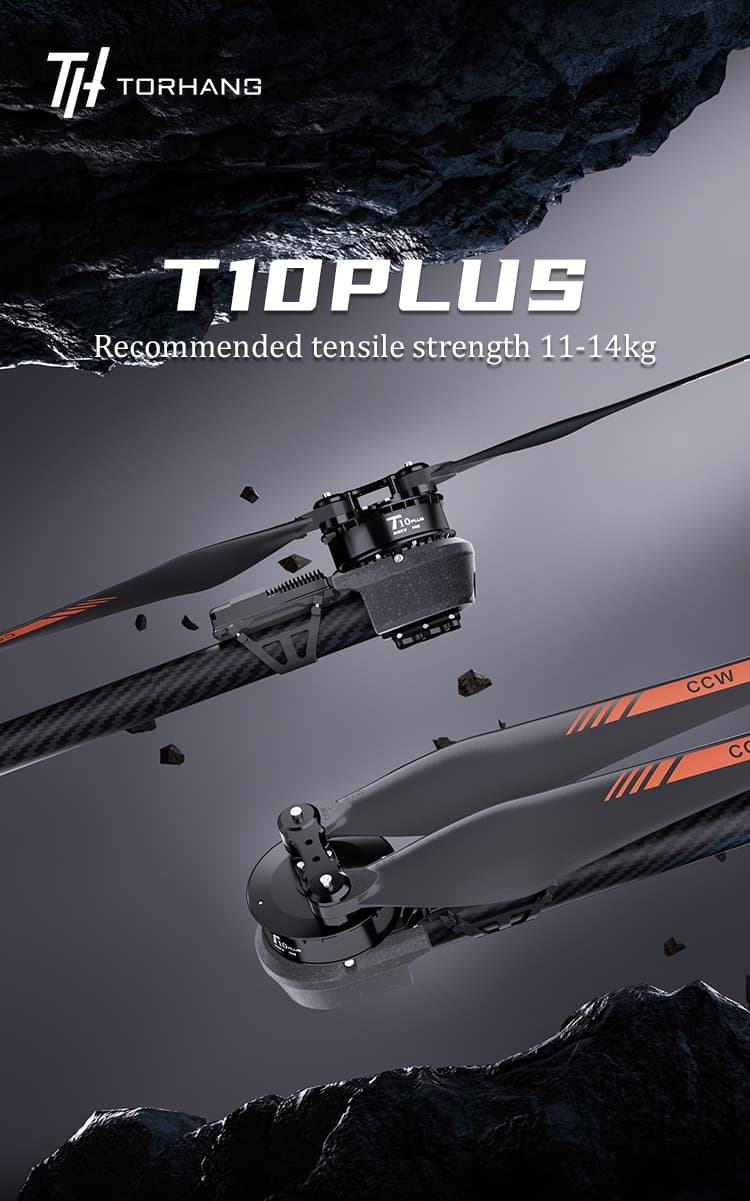

T10-PLUS integrated propulsion system, max thrust 29kg, recommended battery 14-18S, power assembly weight 2025g.
KV
90/71KV
Battery
14-18S
Dimensions
120*50
Carbon Tube
45mm
Total Weight
2025g
Features

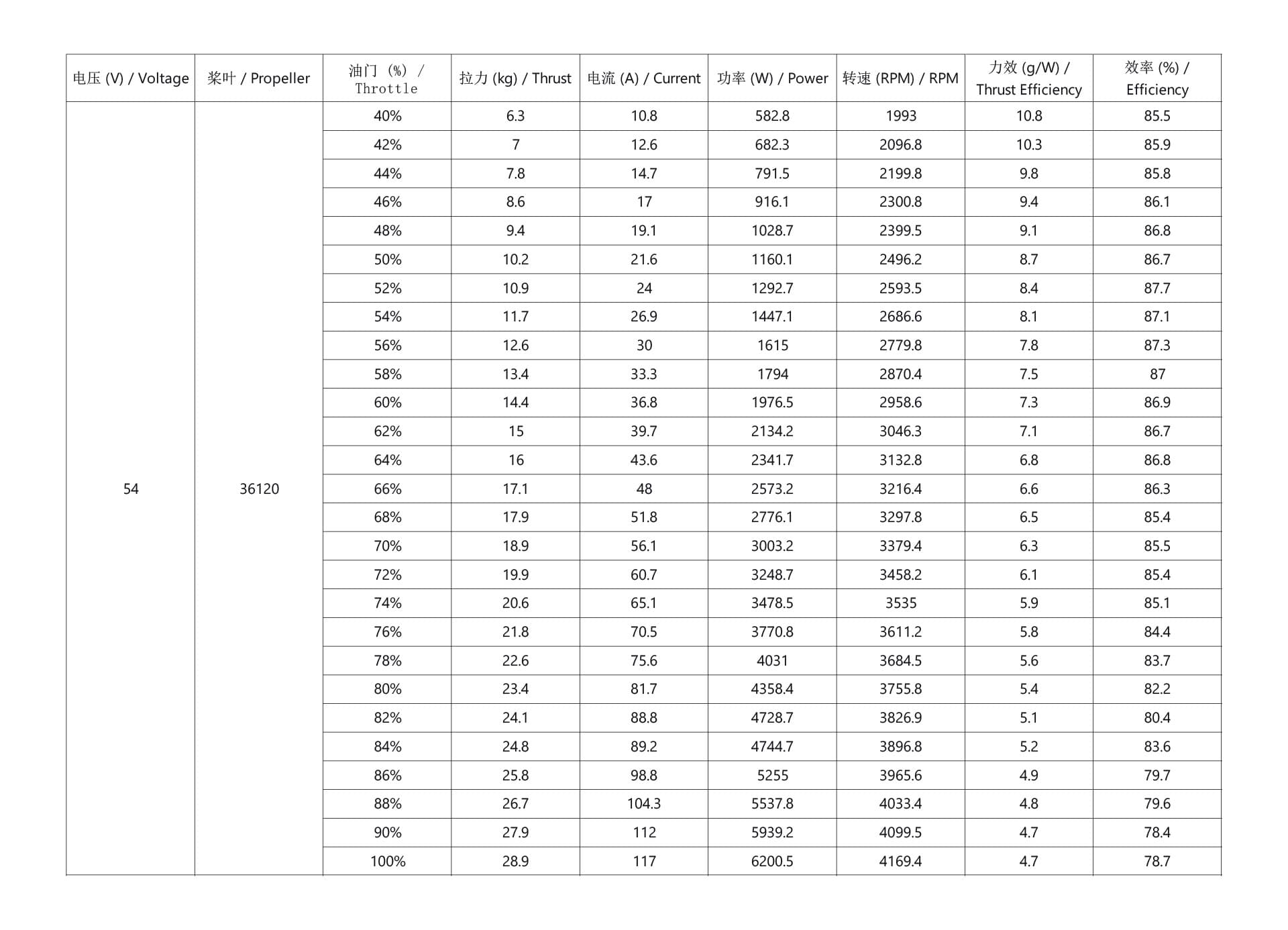

Max Thrust: 29kg
Recommended Takeoff Weight: 13-14kg
Recommended Battery: 14-18S
Total Weight: 2025g
Applicable carbon tube size: 45mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 1600W
Max Input Power: 6300W
Rated Thrust Efficiency: 8.5g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63/81V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 45A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 150A（10s)

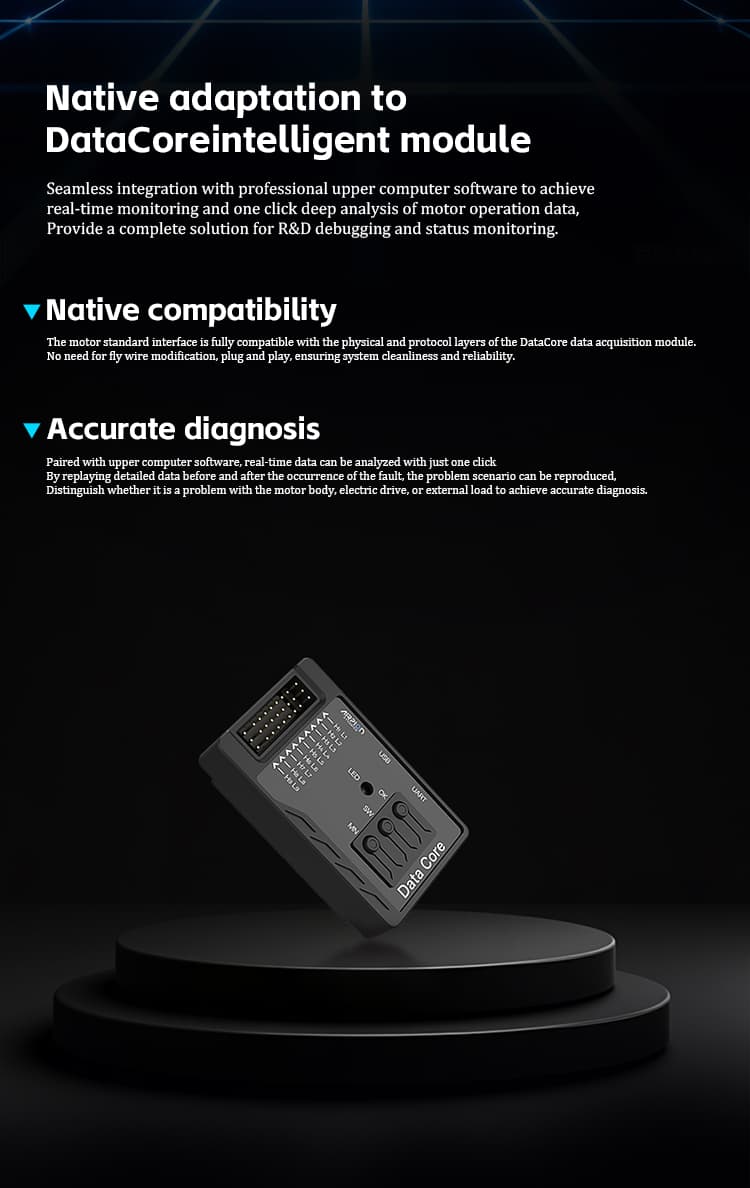

Communication interface: CAN
KV Rating: 90/71KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 343.30/481 .00/431 .35g
Applications
AgricultureLogisticsIndustrial
