T6-PLUS
T6-PLUS

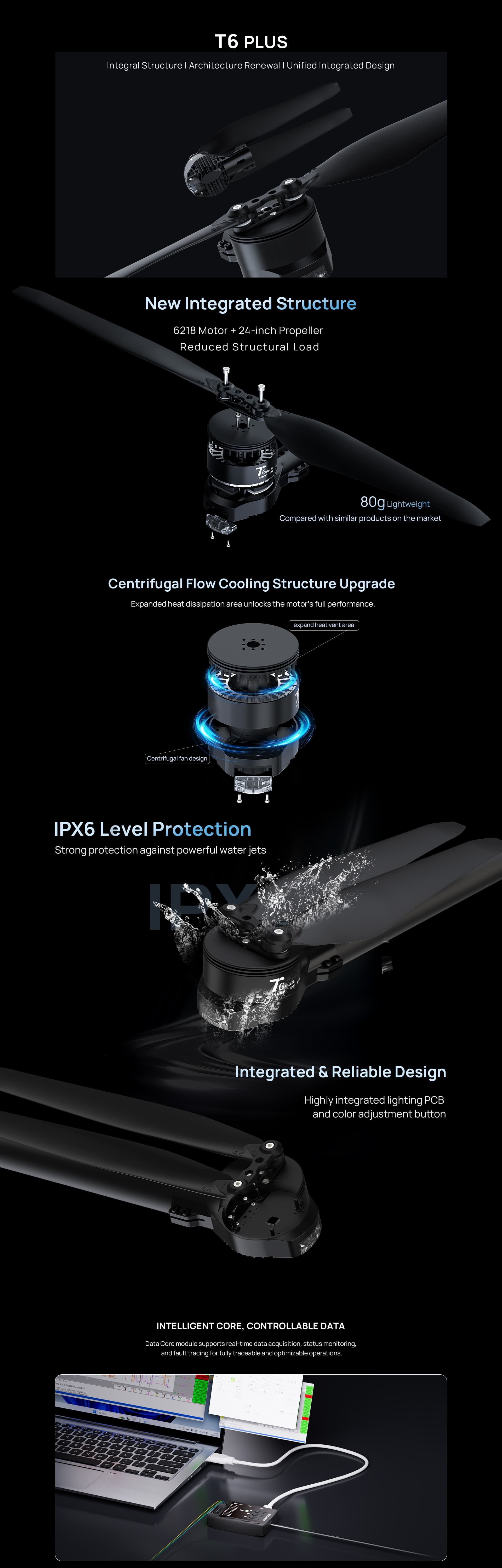

T6-PLUS integrated propulsion system, max thrust 12kg, recommended battery 12S-14S, power assembly weight 620±10g.
KV
160KV
Battery
12S-14S
Dimensions
70*41
Carbon Tube
30mm
Total Weight
620±10g
Features
Max Thrust: 12kg
Recommended Takeoff Weight: 5-5.5kg
Recommended Battery: 12S-14S
Total Weight: 620±10g
Applicable carbon tube size: 30mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 635W
Max Input Power: 2550W
Rated Thrust Efficiency: 8.1g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 20A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 80A（10s)
Communication interface: CAN
KV Rating: 160KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 101.95g
Applications
AgricultureLogisticsIndustrial
