T15
T15

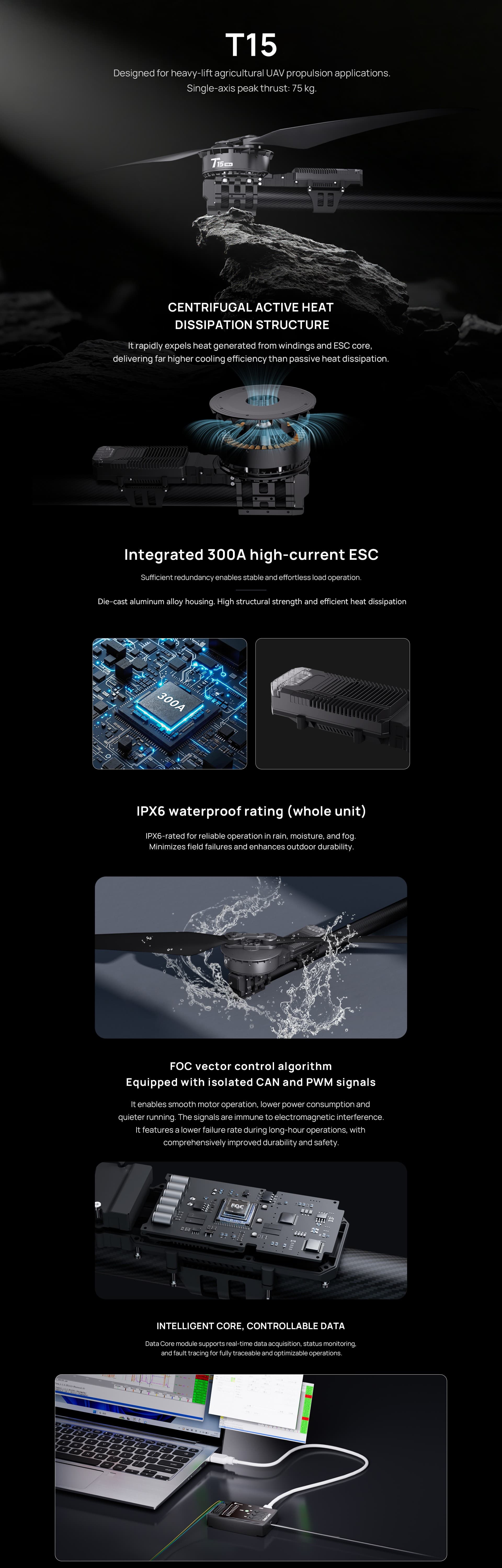

T15 integrated propulsion system, max thrust 75kg, recommended battery 18S, power assembly weight 5.5kg.
KV
46KV
Battery
18S
Dimensions
190*72.5
Carbon Tube
60mm
Total Weight
5.5kg
Features
Max Thrust: 75kg
Recommended Takeoff Weight: 37kg
Recommended Battery: 18S
Total Weight: 5.5kg
Applicable carbon tube size: 60mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 4400W
Max Input Power: 14.5kW
Rated Thrust Efficiency: 8.4g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 81V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 60A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 300A（10s)
Communication interface: CAN
KV Rating: 46KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 942.95g
Applications
AgricultureLogisticsIndustrial
