T14
T14

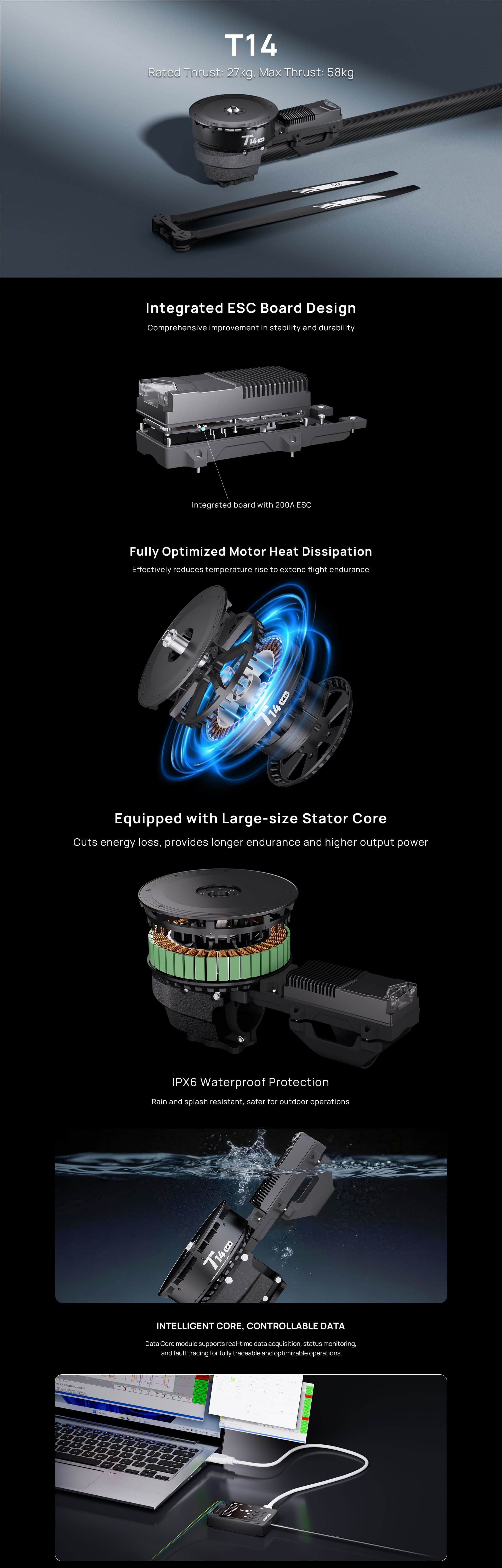

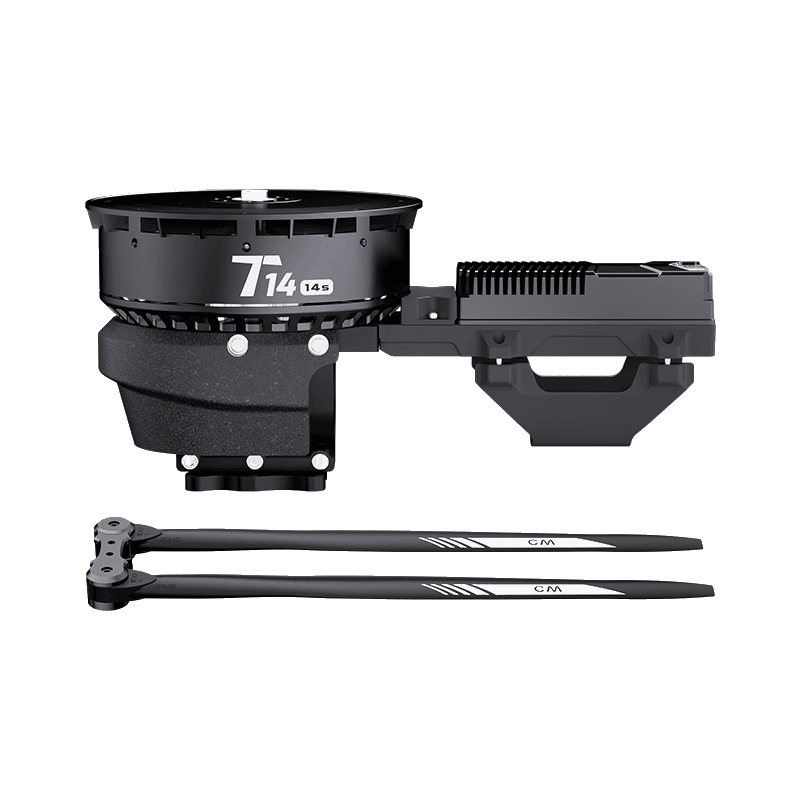

T14 integrated propulsion system, max thrust 58kg, recommended battery 14/18/24S, power assembly weight 4400±50g.
KV
60/45/34KV
Battery
14/18/24S
Dimensions
178.5*65.5
Carbon Tube
50mm
Total Weight
4400±50g
Features
Max Thrust: 58kg
Recommended Takeoff Weight: 27kg
Recommended Battery: 14/18/24S
Total Weight: 4400±50g
Applicable carbon tube size: 50mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 3000W
Max Input Power: 11.5kW
Rated Thrust Efficiency: 8.6g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63/81/108V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 65/45/35A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 230/160/120A（10s)
Communication interface: CAN
KV Rating: 60/45/34KV
Copper Wire Size: /High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 816.25g
Applications
AgricultureLogisticsIndustrial
