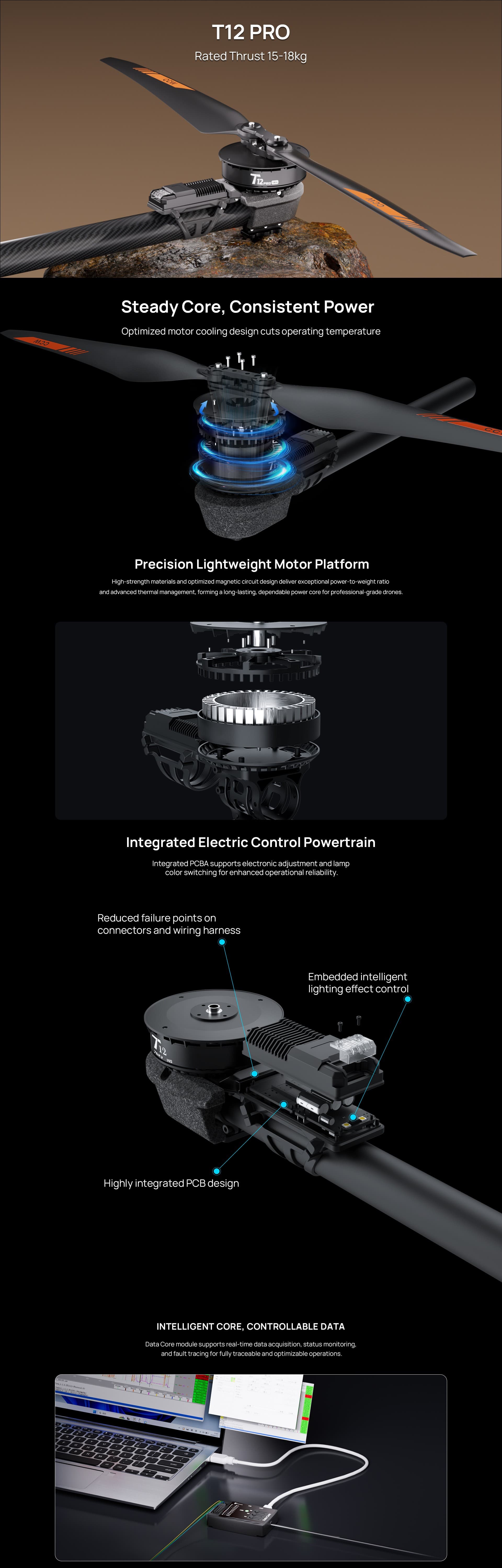

T12 integrated propulsion system, max thrust 39kg, recommended battery 14-18S, power assembly weight 2355g.
KV
83/64KV
Battery
14-18S
Dimensions
140*51.5
Carbon Tube
50mm
Total Weight
2355g
Features
Max Thrust: 39kg
Recommended Takeoff Weight: 15-18kg
Recommended Battery: 14-18S
Total Weight: 2355g
Applicable carbon tube size: 50mm
Operating Temperature: -20~40°C
Ingress Protection: IPX6
Rated Input Power: 2200W
Max Input Power: 8300W
Rated Thrust Efficiency: 8.5g/w
PWM Input Signal Level: 3.3V/5V
Throttle Pulse Width: 1050 ~1950μs
Compatible Signal Frequencies: 50~500 Hz
Max Allowable Voltage: 63/81V
Continuous Current Non-hermetic Ambient Temperature≤ 60℃: 45A
Maximum Current Non-hermetic Ambient Temperature≤ 60℃: 150A（10s)
Communication interface: CAN
KV Rating: 83/64KV
Copper Wire Size: High Temp Enameled Wire
Bearing: Waterproof
Total Weight: 431.80g
Applications
AgricultureLogisticsIndustrial
