4130
4130

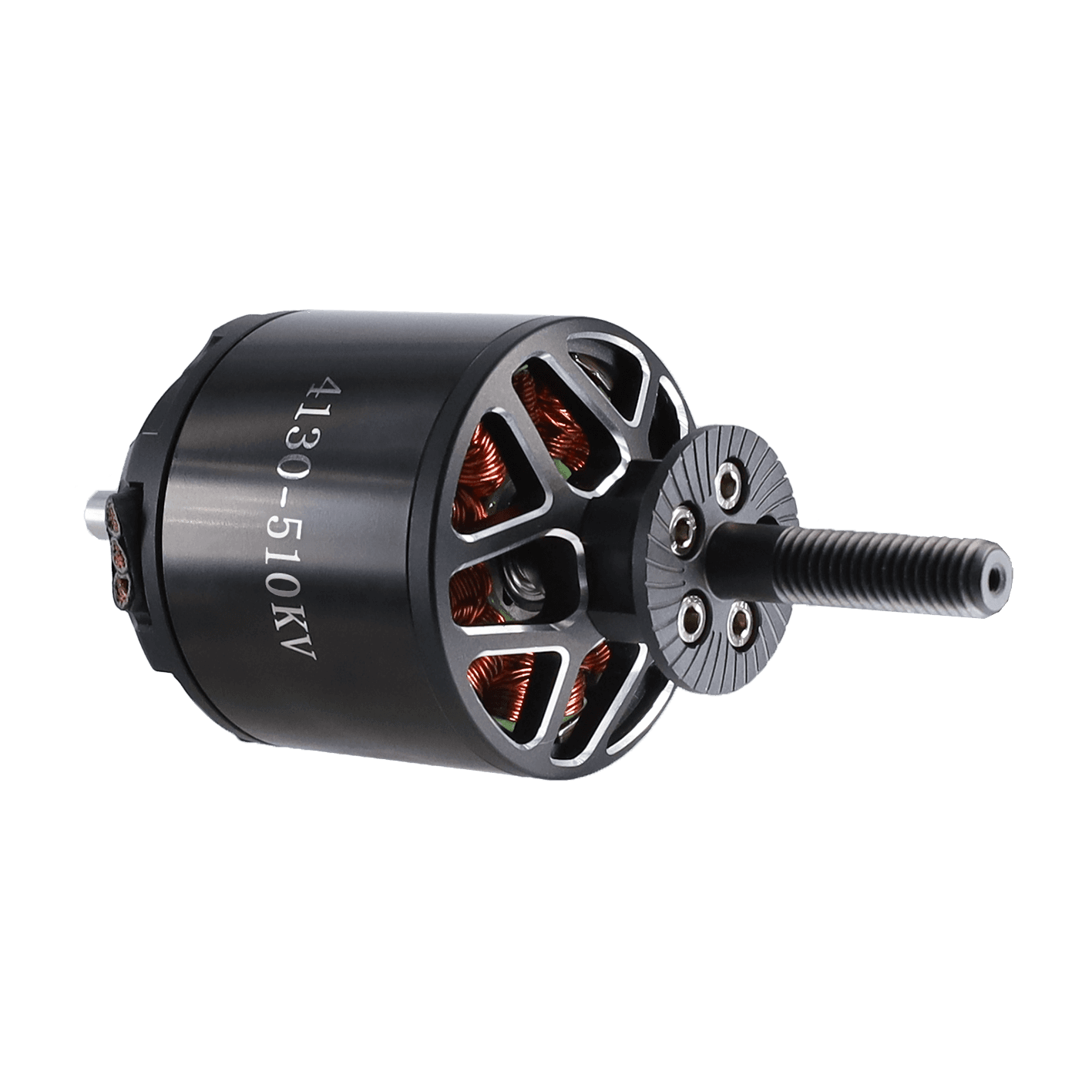

4130 brushless motor, KV 510KV, for 16/17/18inch propellers, max thrust -, weight 403±12g（With wire）.
KV
510KV KV
Weight
403±12g
Diameter
D49.5*56.6mm
Length
18±0.3mm
Features
Model: 4130
Motor Size: D49.5*56.6mm
Shaft-D: Ф6-0/-0.02mm
Shaft-L: 18±0.3mm
Wire Length: 90±3mm
Weight: 403±12g（With wire）
No Load Voltage: 20V
No load Current: 3.8±0.3A
No load Speed: 9690~10710RPM（510KV）
Internal resistance: 11.37mΩ±5%
Working Voltage: 6-8S（3.7-4.2V/S）
KV Rating: 510KV
Propeller: 16/17/18inch
Max Thrust: 9kg
Flight Weight: 5-6kg
Applications
Fixed Wing UAVMappingLine Patrol
