BD14120X4
BD14120X4

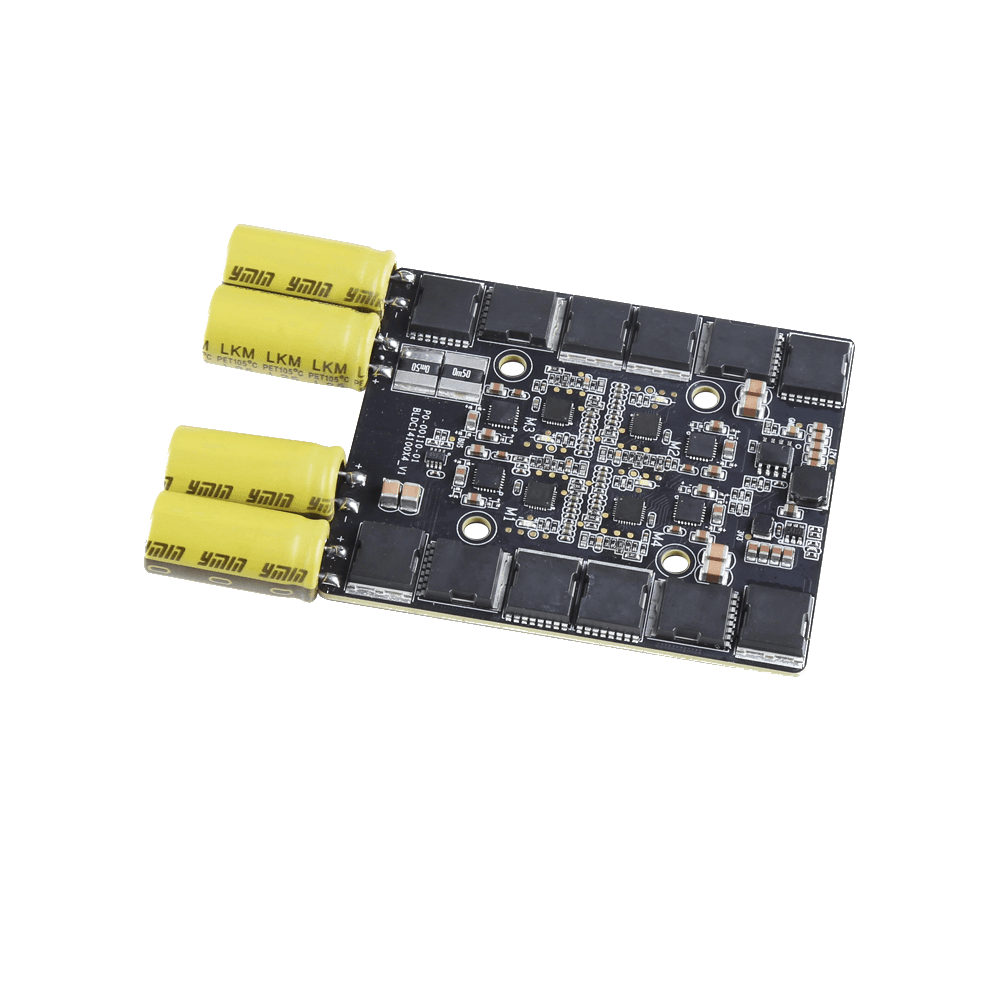

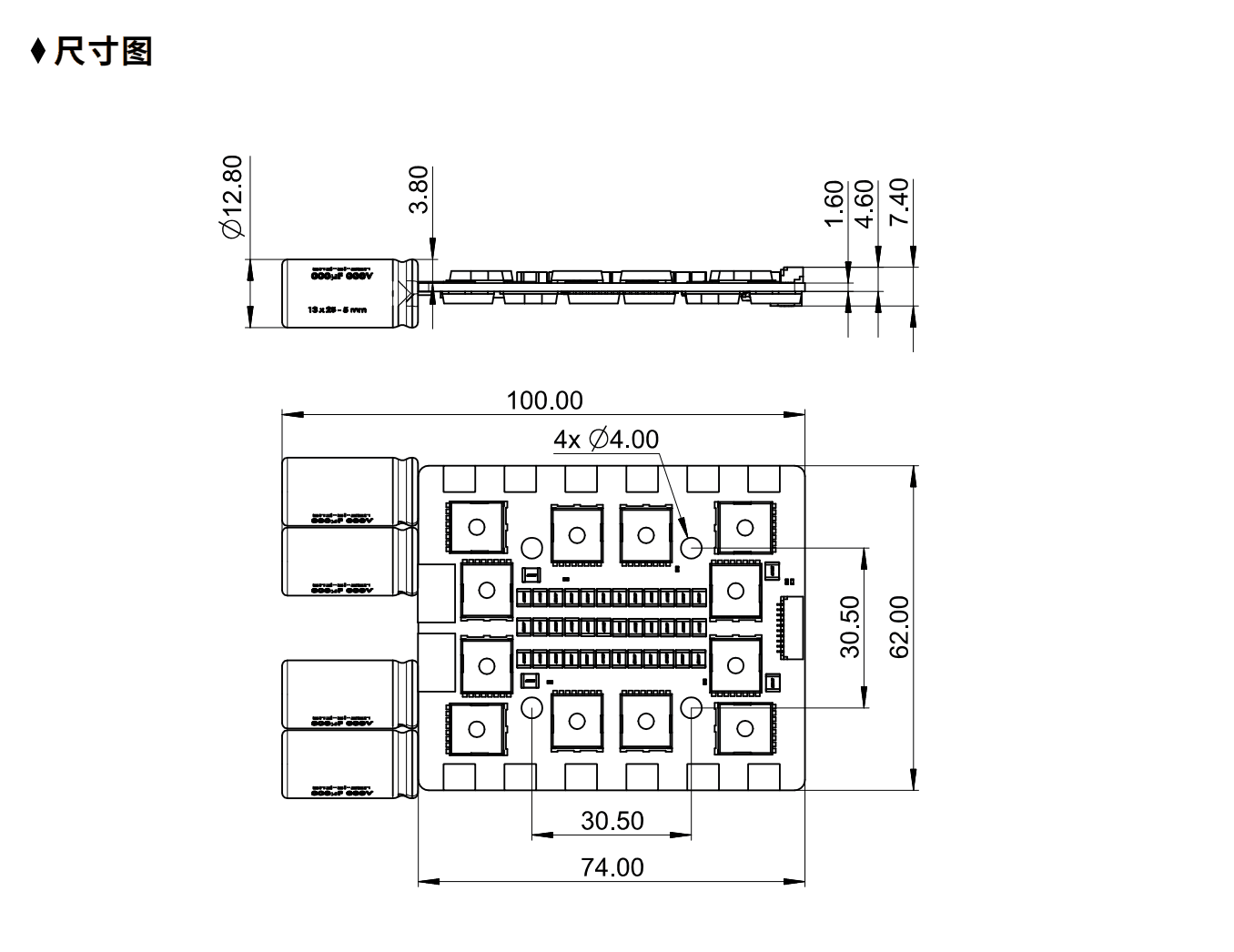

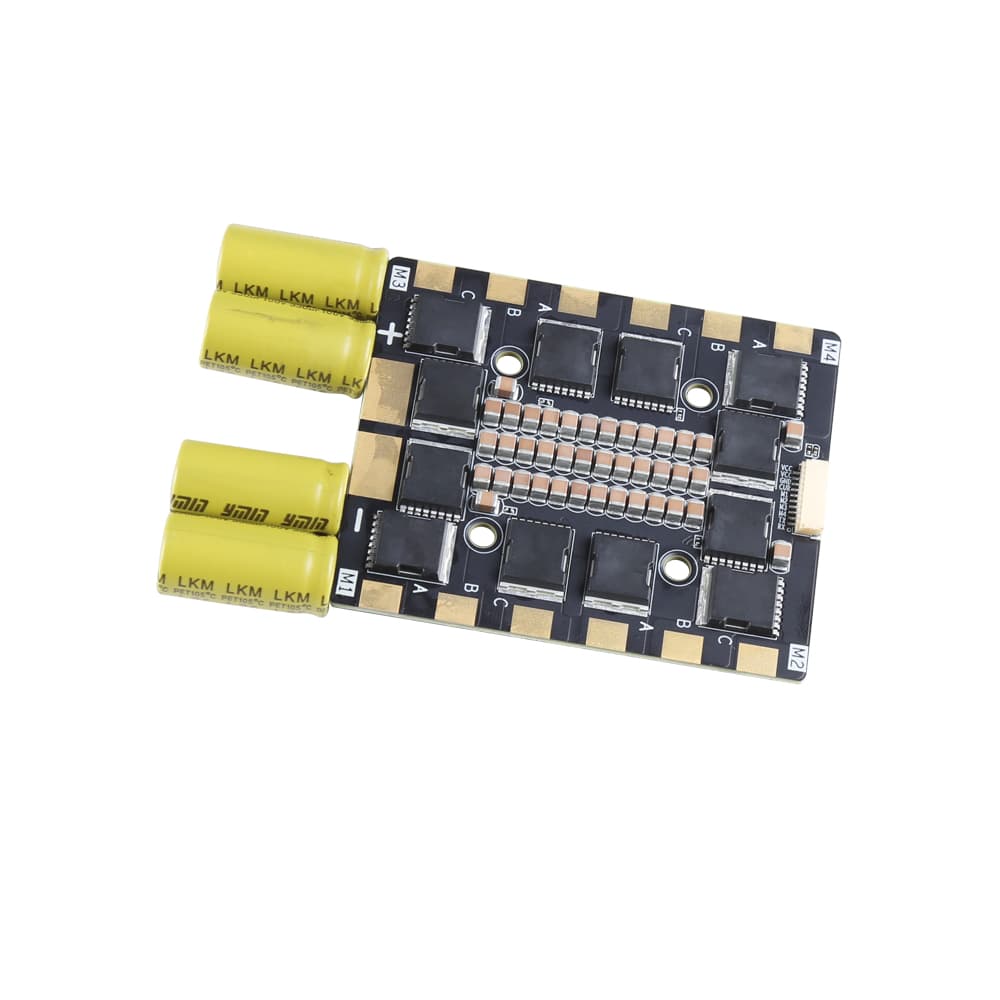

BD14120X4 4-in-1 BLDC square-wave ESC, 63V max, supports 13-18" props, 30.5mm mounting, onboard current sensor, bidirectional DShot & RPM filter

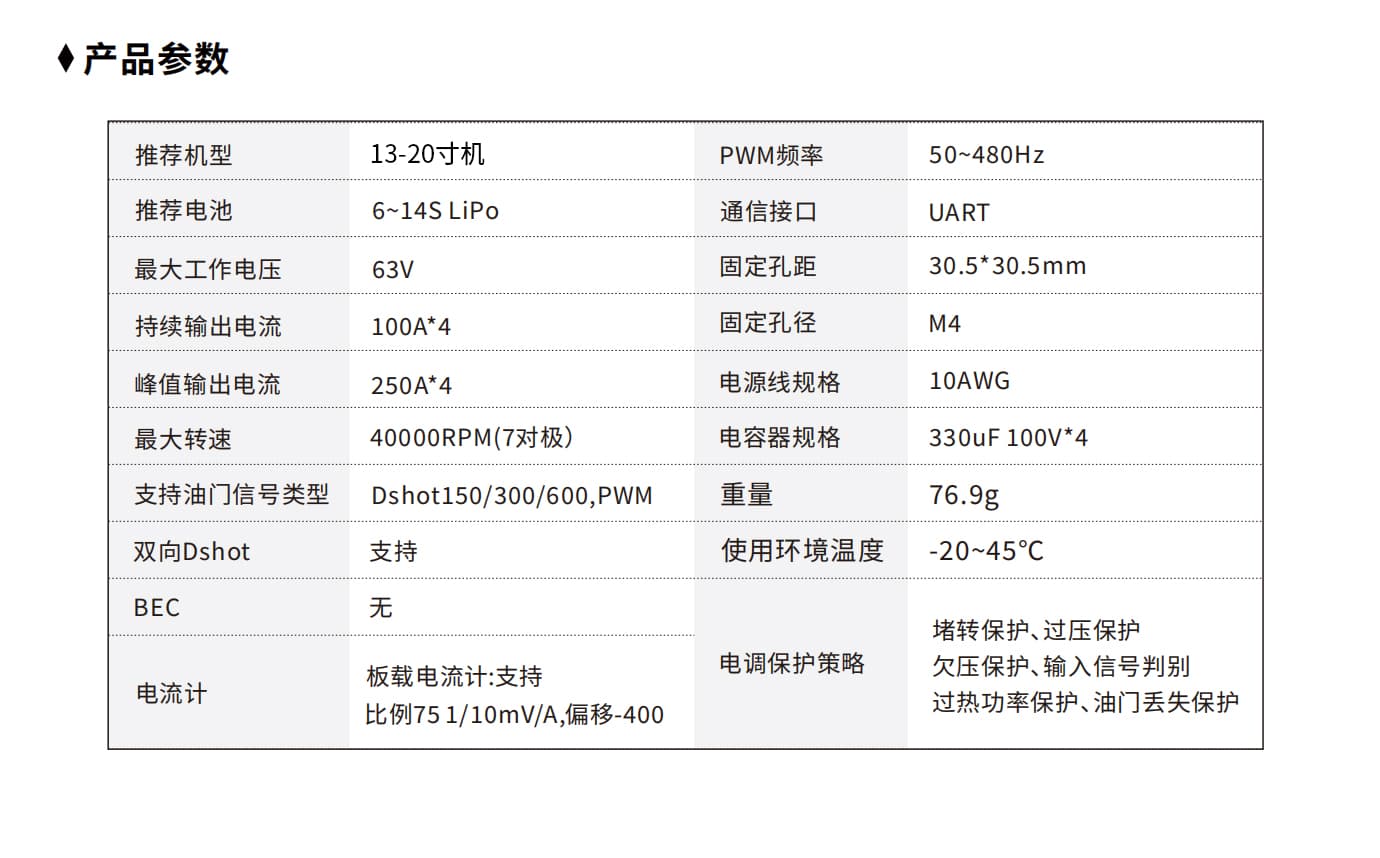

Voltage
6-14S LiPo
Cont.Current
100A*4 (持续) / 250A*4 (峰值)
Type
4合1
Recommended Models
13-20寸
Weight
76.9g
Features
6-14S LiPo / 63V
100A*4 cont. / 250A*4 peak
Dshot150/300/600 + PWM
Bidirectional DShot

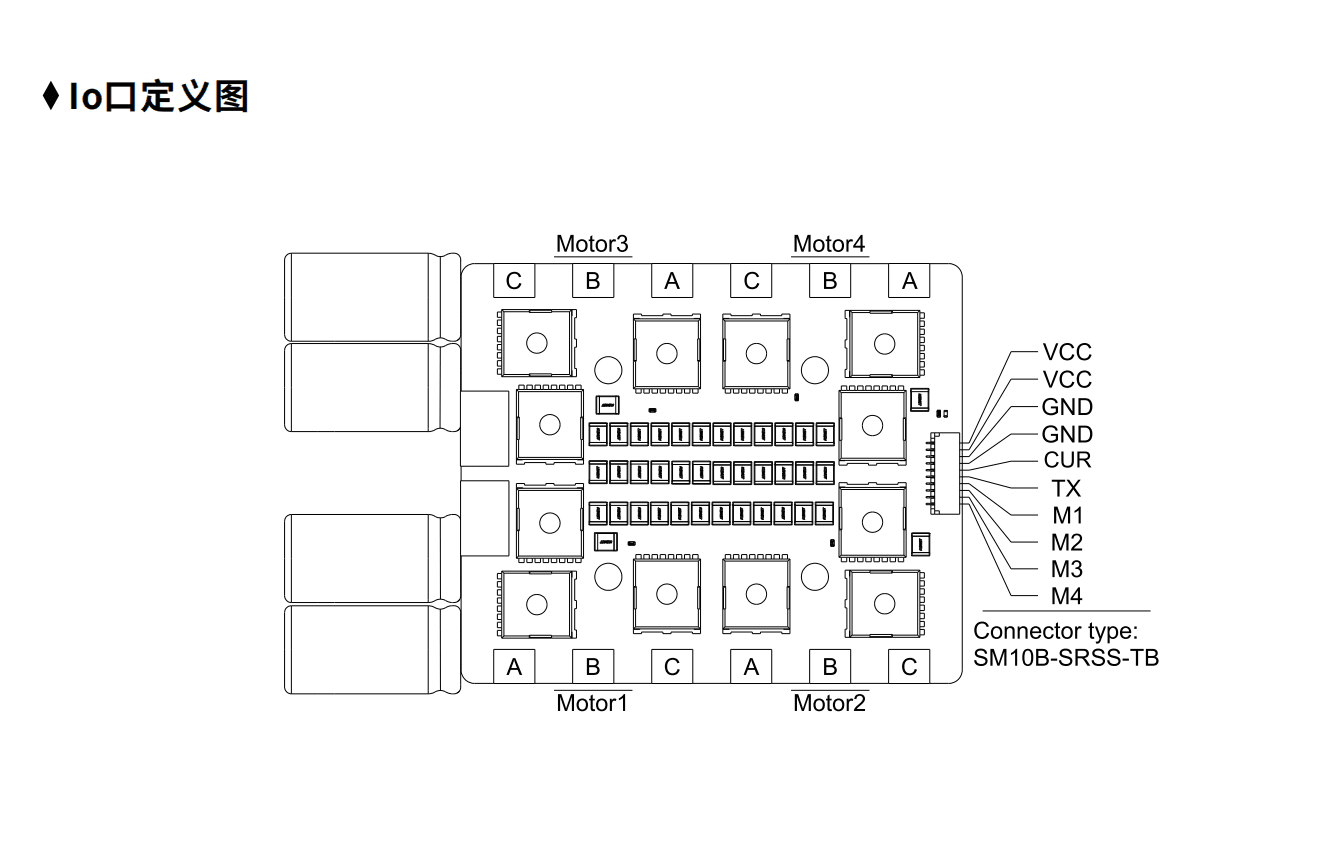

UART interface
Onboard current sensor
Stall/over-voltage/under-voltage/over-temp protection
6-layer 3Oz HDI PCB
Applications
FPV RacingMultirotor
