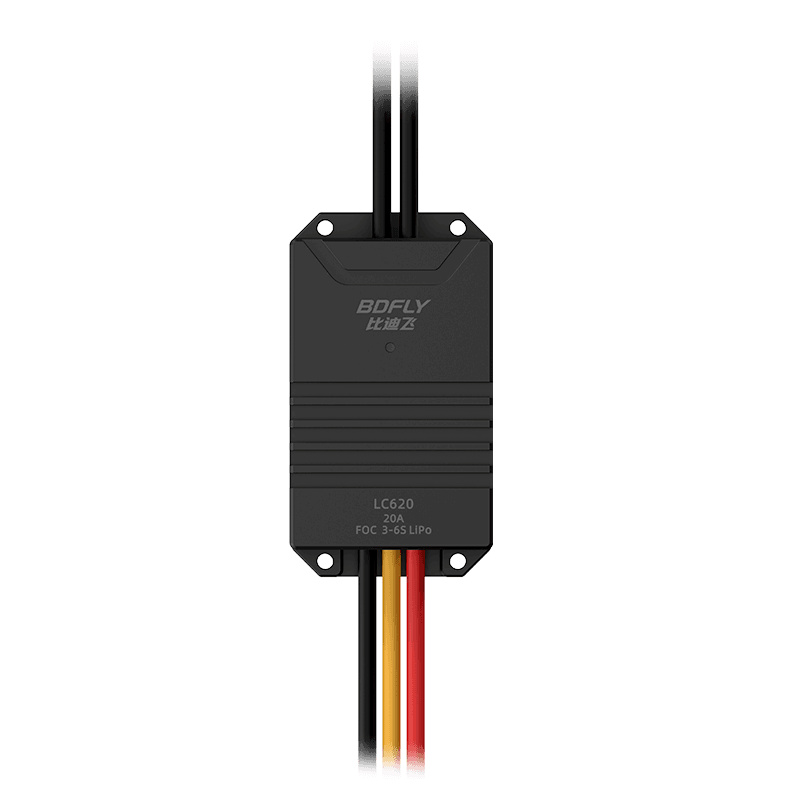

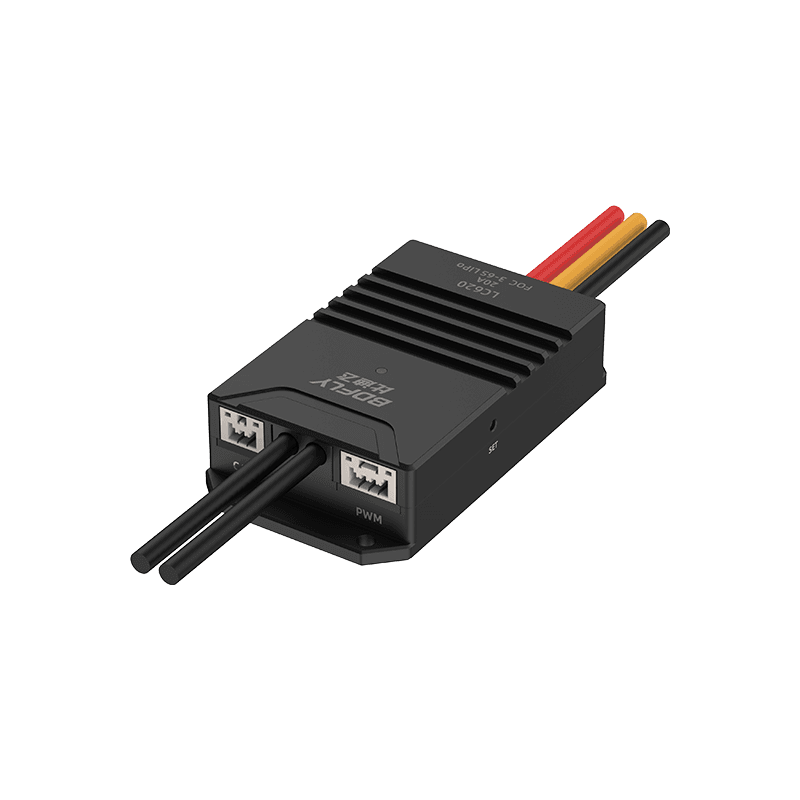

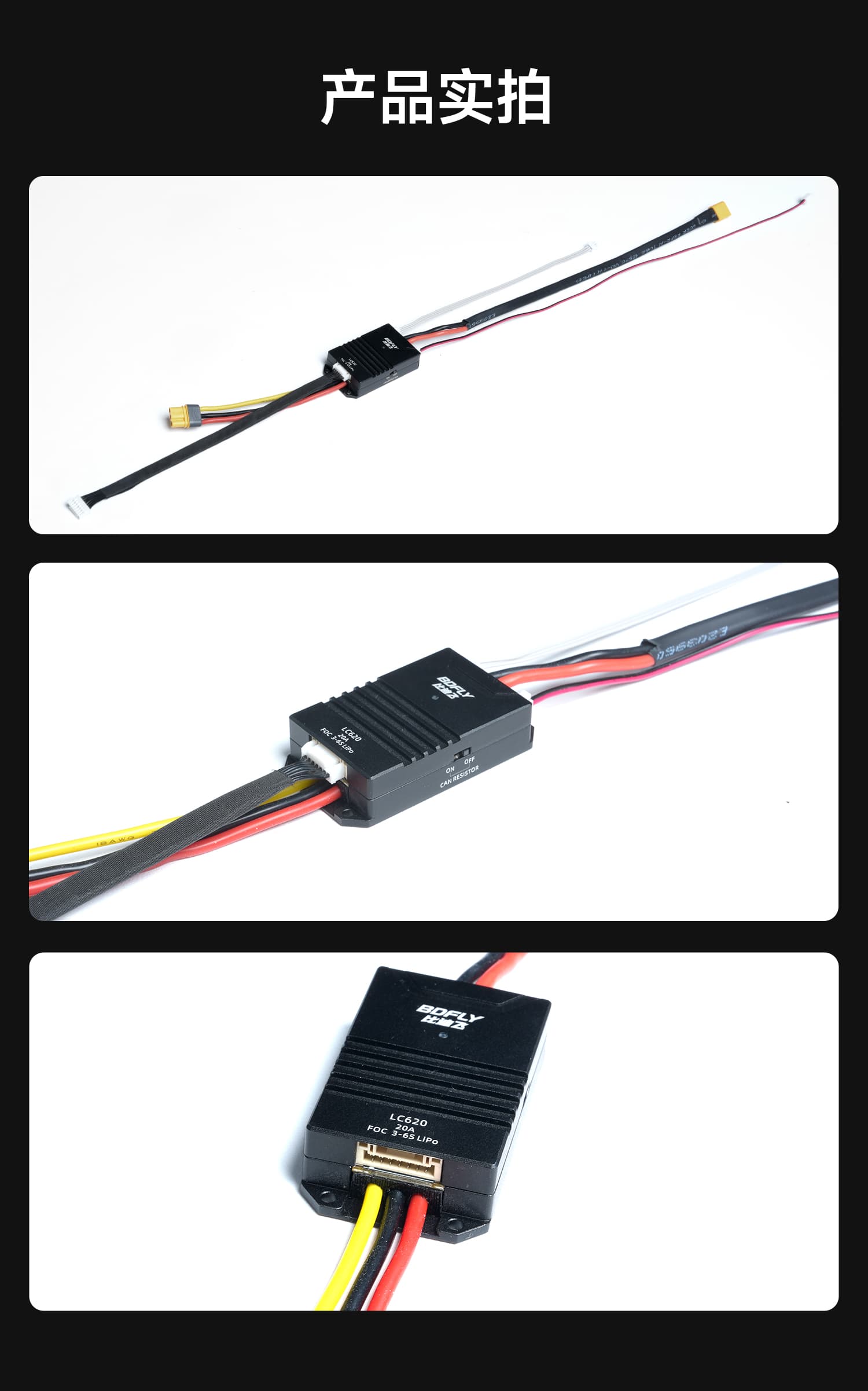

LC620 Brushless Motor ESC
LC620 Brushless Motor ESC

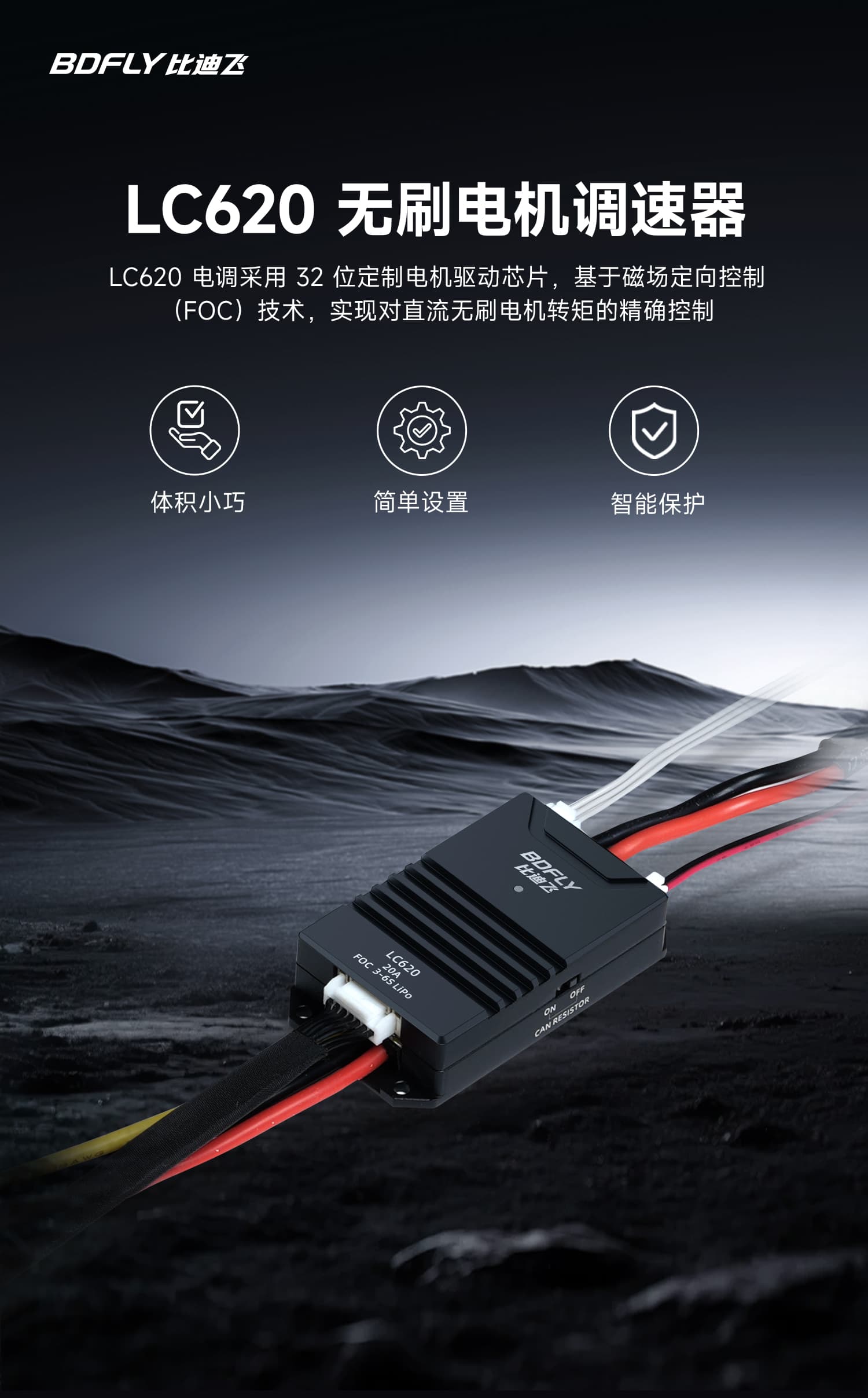

LC620 uses a 32-bit custom motor driver chip with Field-Oriented Control (FOC) for precise torque control of DC brushless motors. It supports dual signal input via CAN bus and PWM, features a 7-Pin port for motor sensor data, LED indicators, a SET calibration button and a CAN termination resistor switch — designed for robot DC brushless motors.
Voltage
3-6S LiPo
Cont.Current
20A
Type
FOC 单路 / CAN+PWM
Recommended Models
机器人直流无刷电机
Weight
35
Features
32-bit custom motor driver chip
3-6S LiPo (FOC) / 20A
Field-Oriented Control (FOC) for precise torque

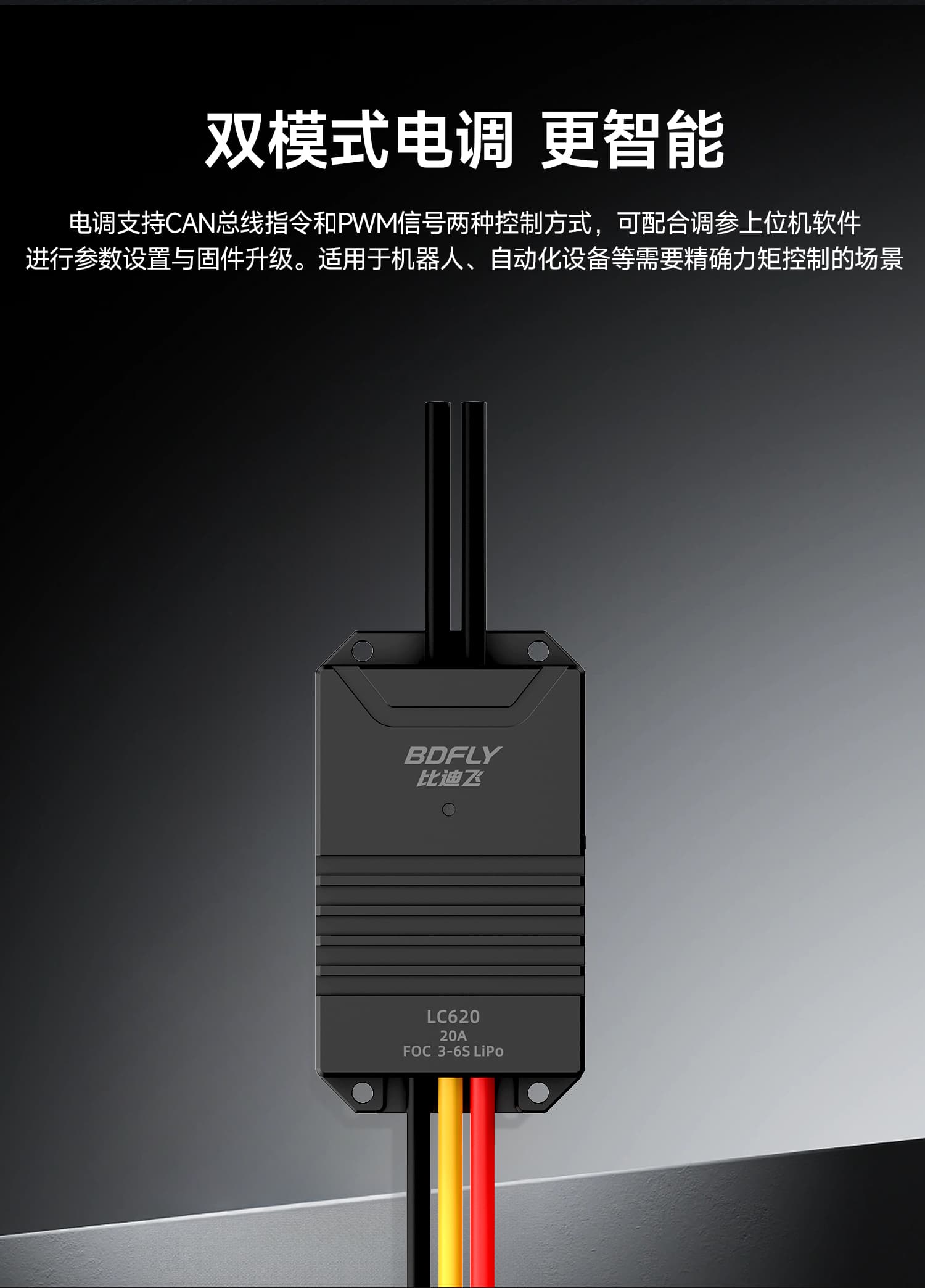

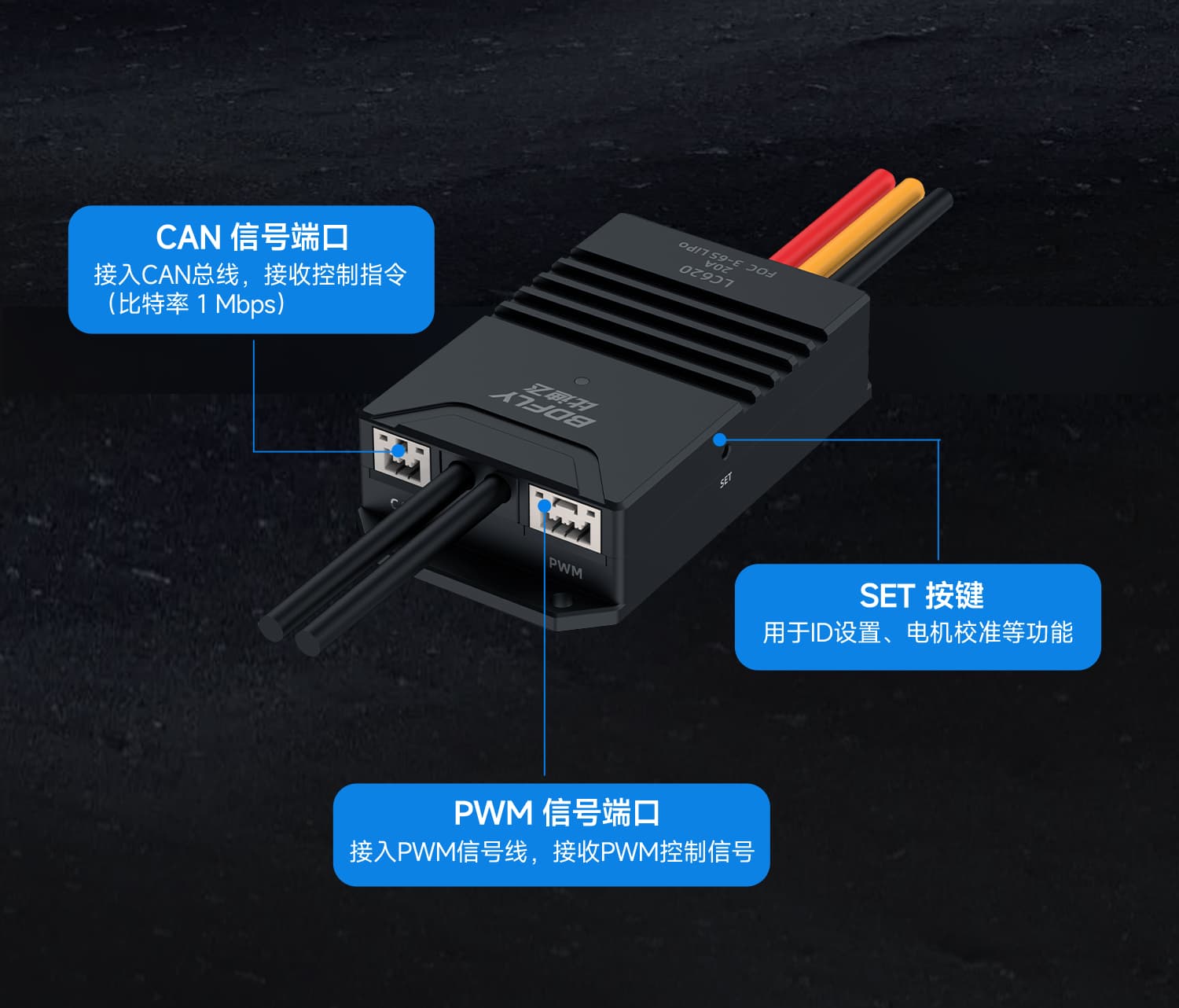

Dual input: CAN bus (1 Mbps) + PWM

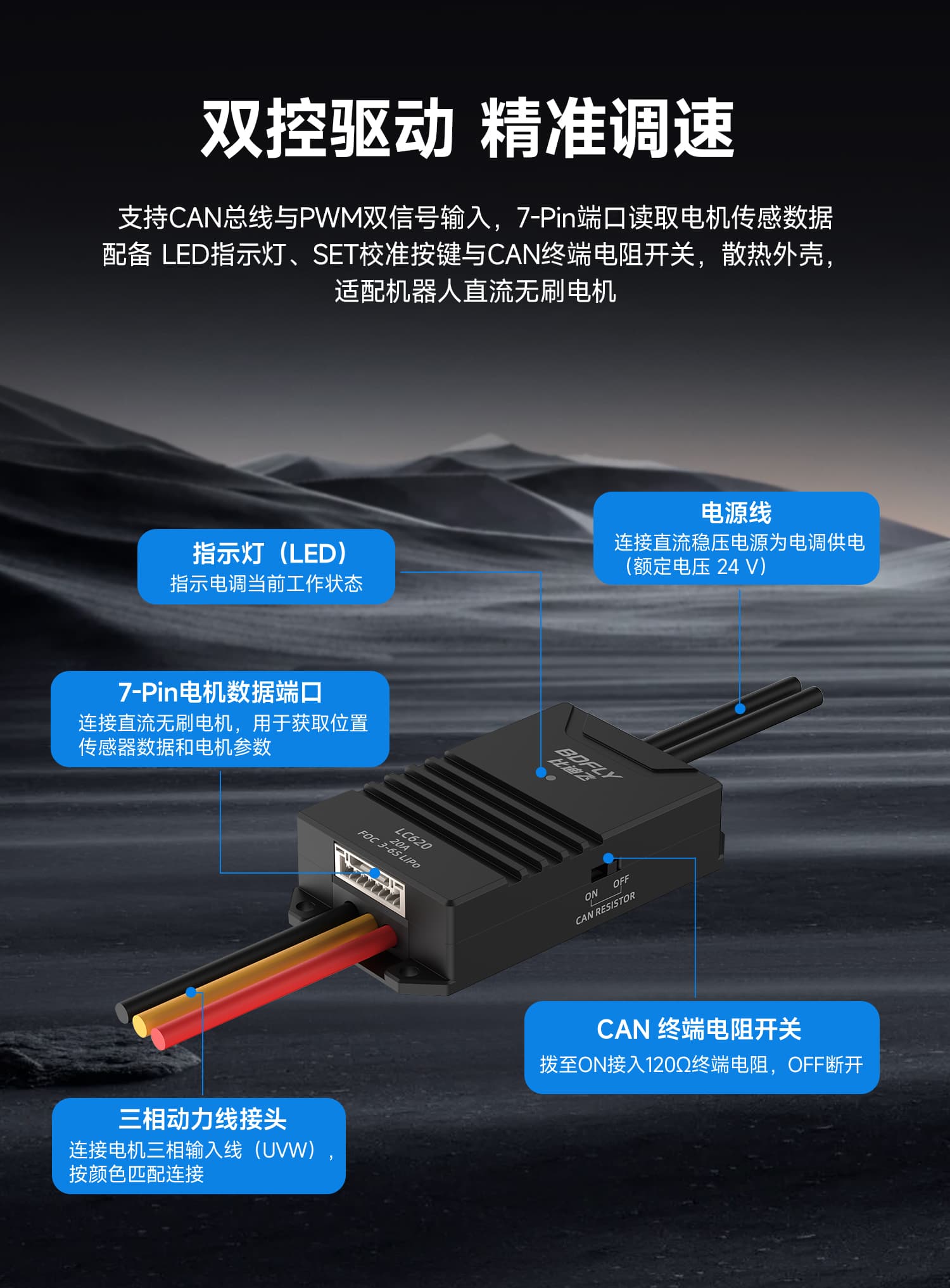

7-Pin motor data port for position sensor data

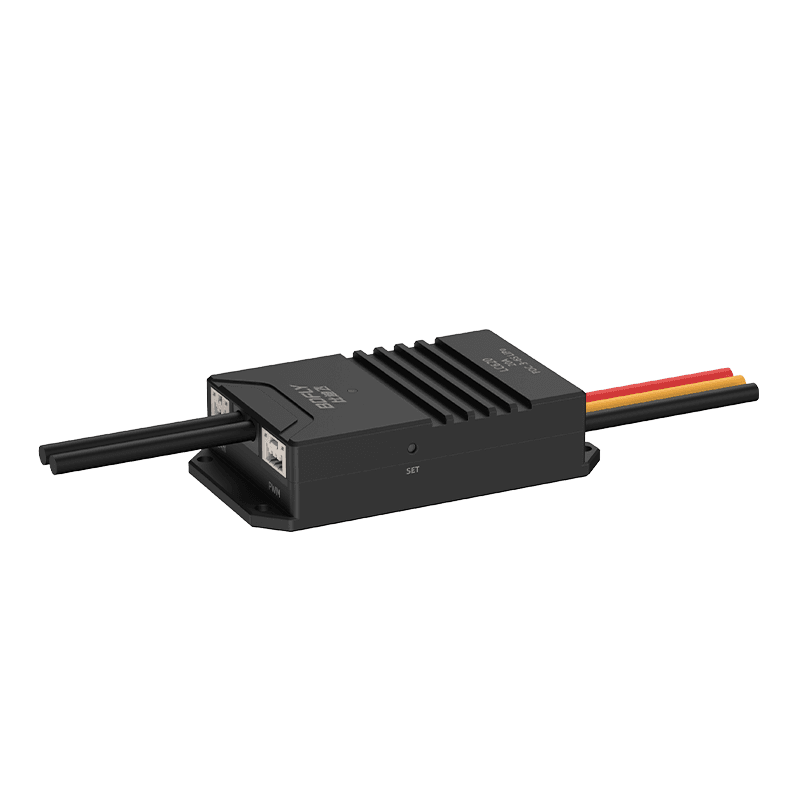

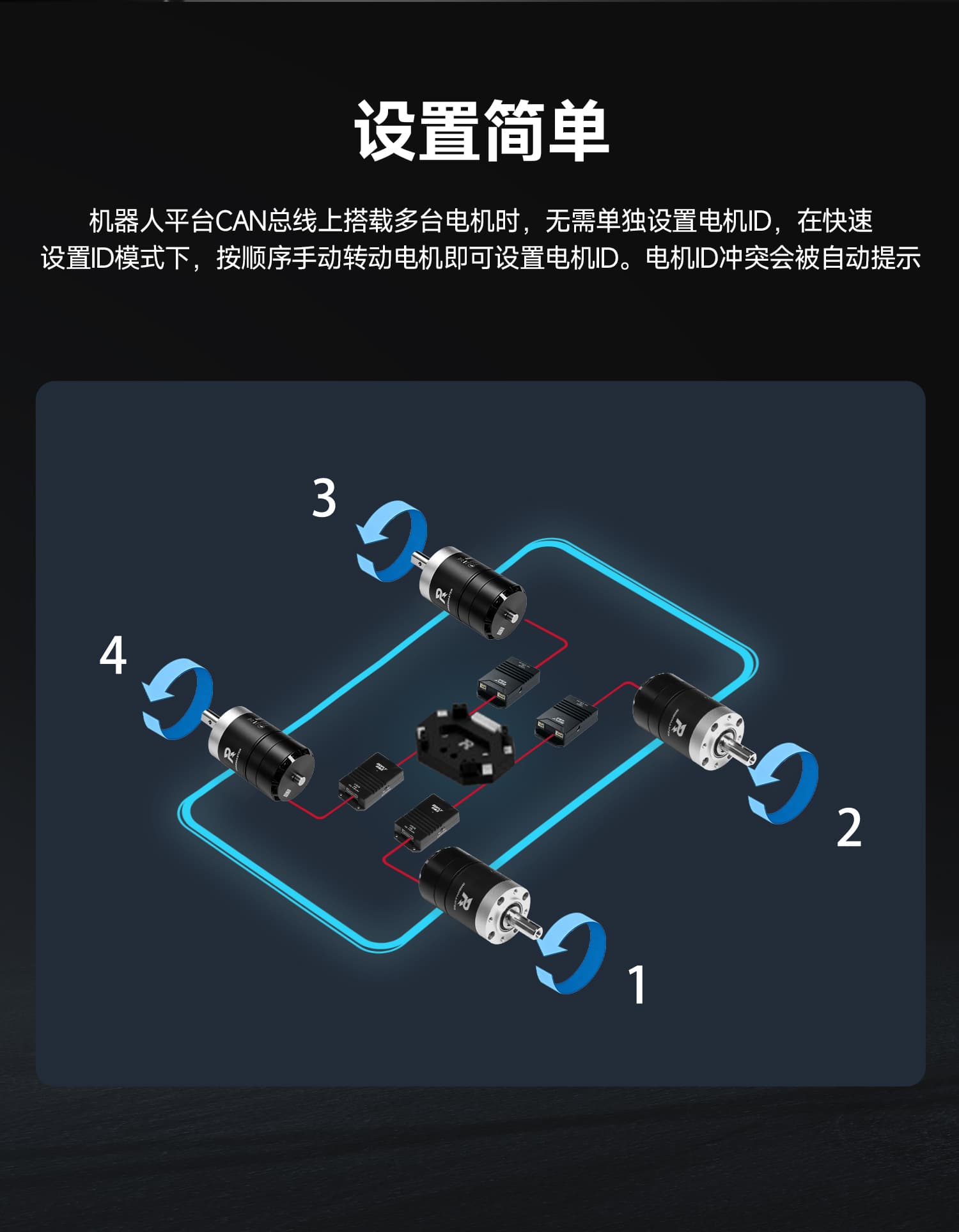

SET button for ID setup and motor calibration

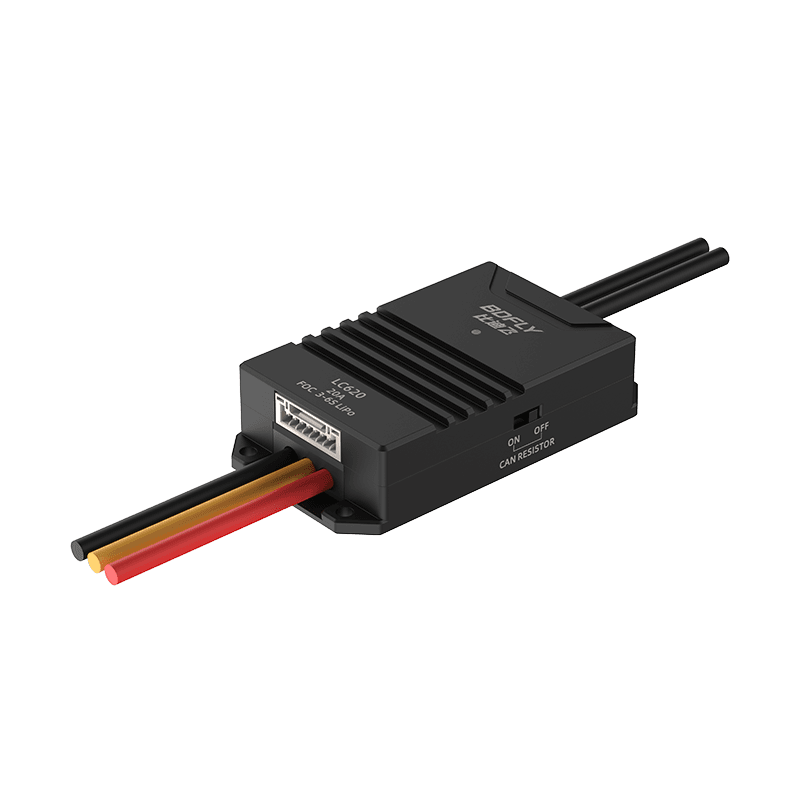

CAN termination resistor switch (120Ω when ON)

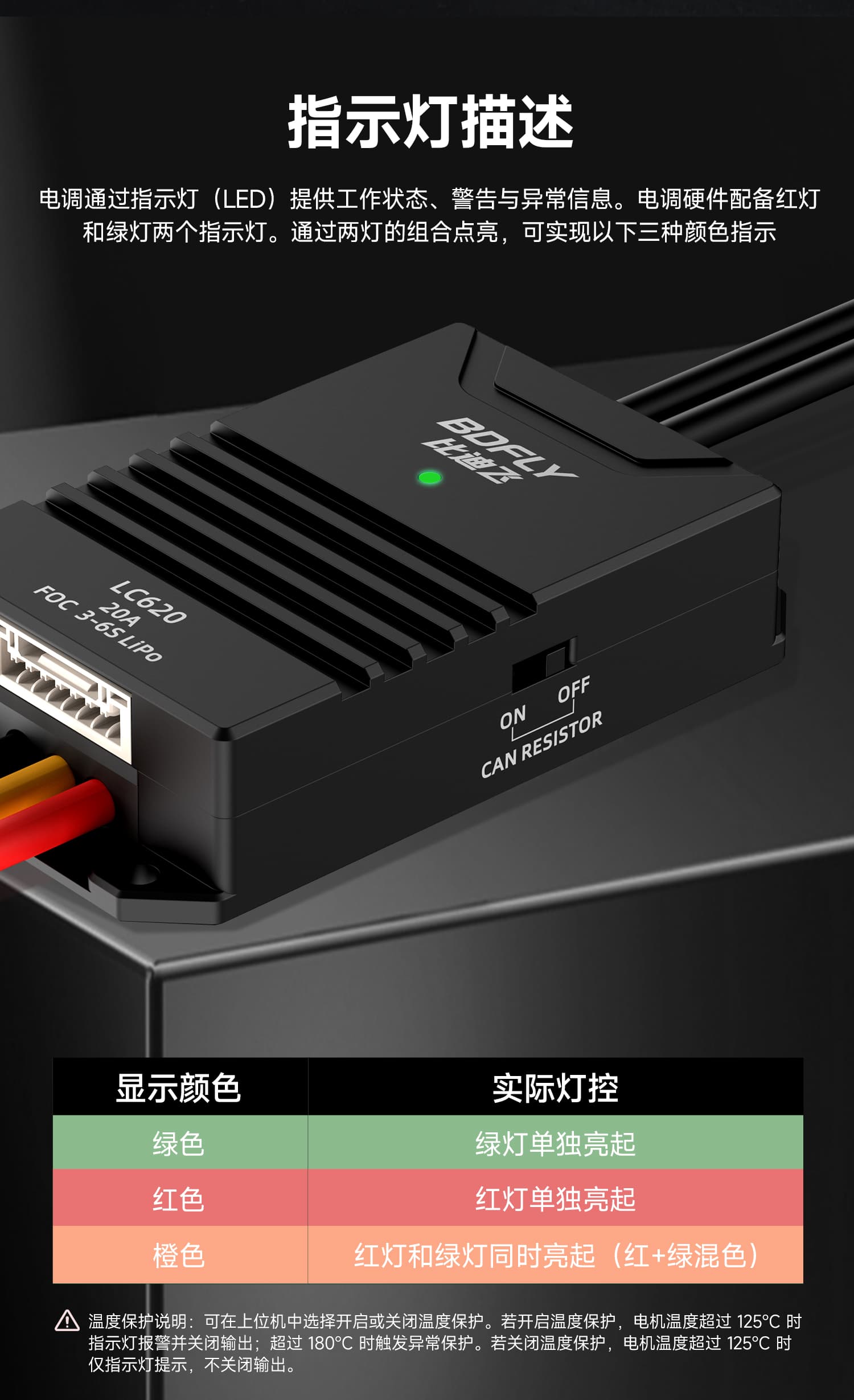

Dual-color LED: green / red / orange status
Temp protection: alarm & output-off at 125°C, fault at 180°C

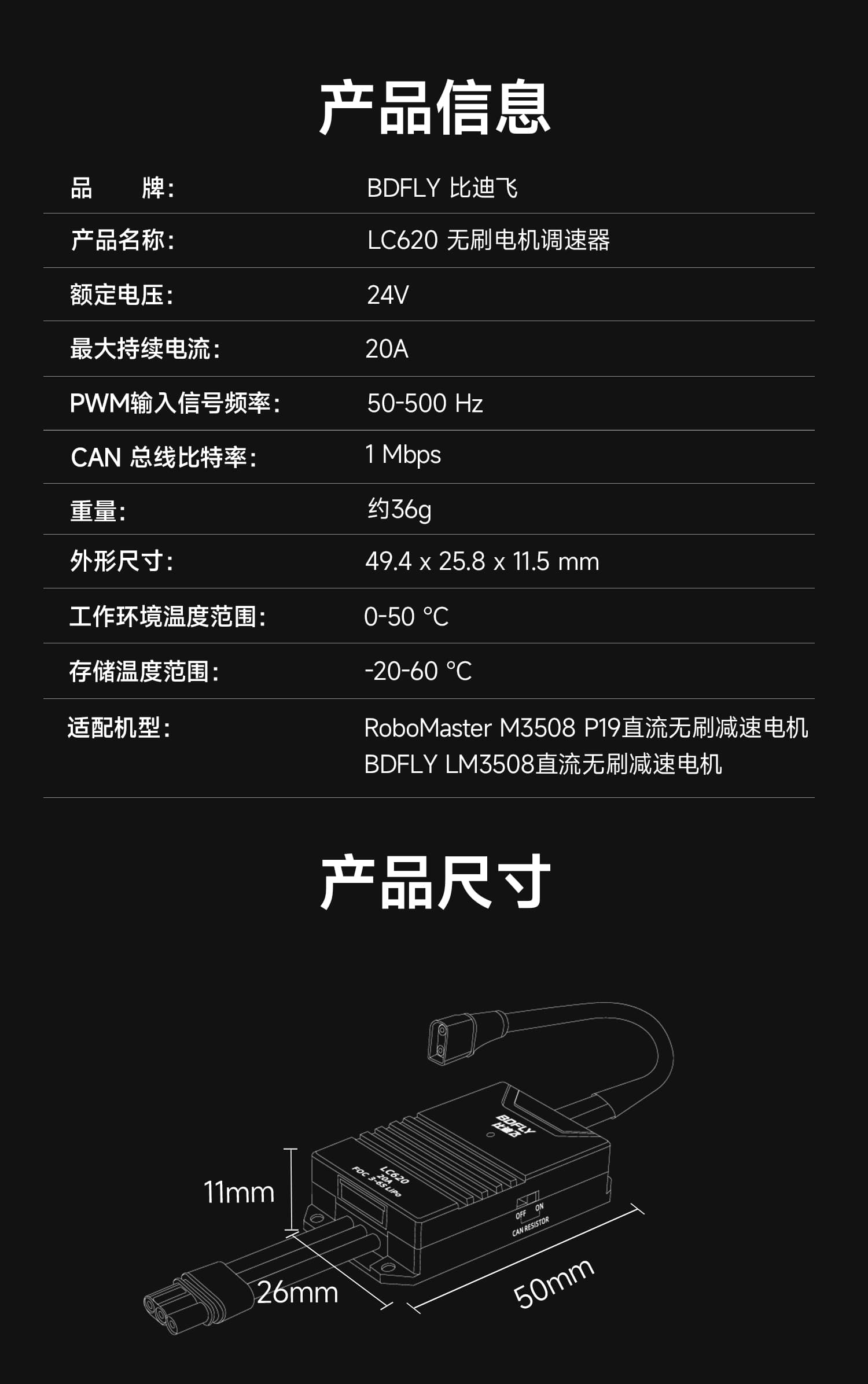

Compact 50×26×11mm heat-dissipating housing
Applications
RoboticsAutomation EquipmentPrecision Torque Control
