BD14120
BD14120

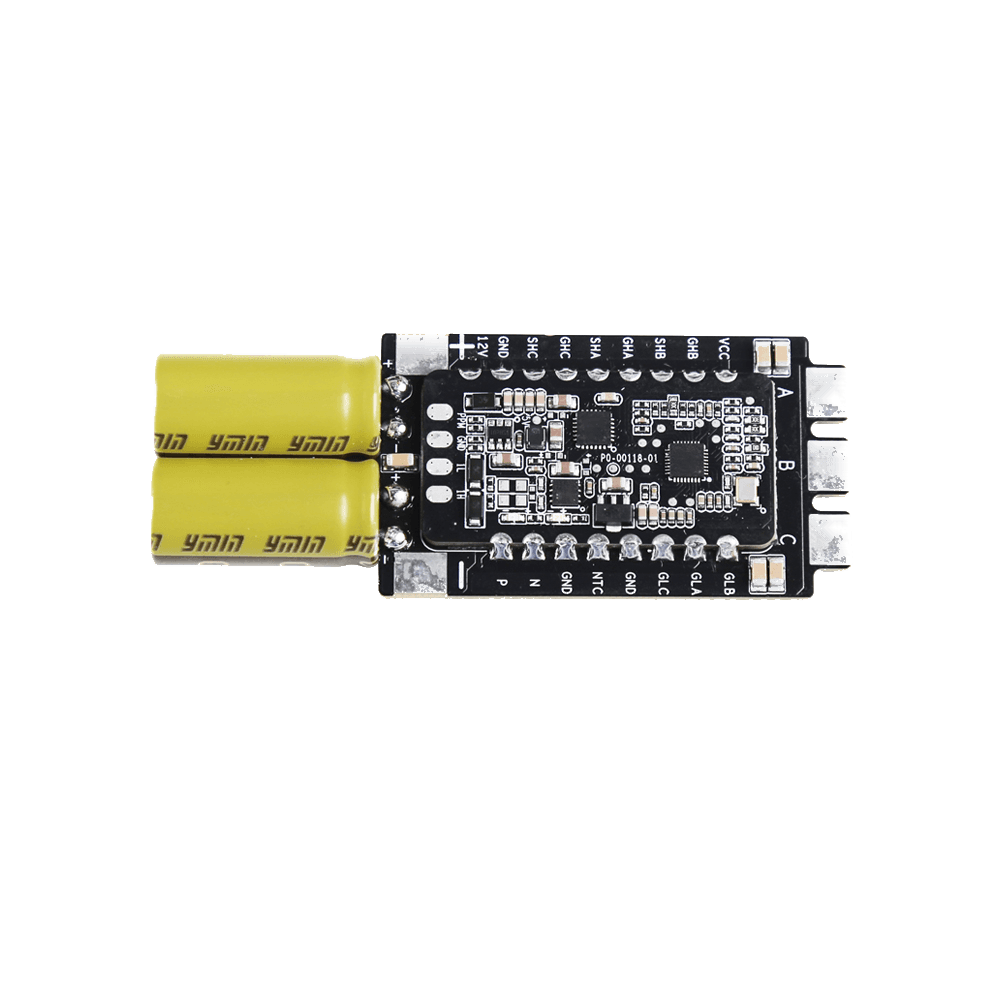

BD14120 Single BLDC square-wave ESC, 63V max, supports 13-18" props, CAN/UART, bidirectional DShot & RPM filter
Voltage
6-14S LiPo
Cont.Current
100A (持续) / 250A (峰值)
Type
单轴
Recommended Models
13-20寸
Weight
30.1g
Features
6-14S LiPo / 63V
100A cont. / 250A peak
Dshot150/300/600 + PWM
Bidirectional DShot
CAN/UART interface
Stall/over-voltage/under-voltage/over-temp protection
Dual copper bus bars
Applications
FPV RacingMultirotor
