BD0870X4
BD0870X4

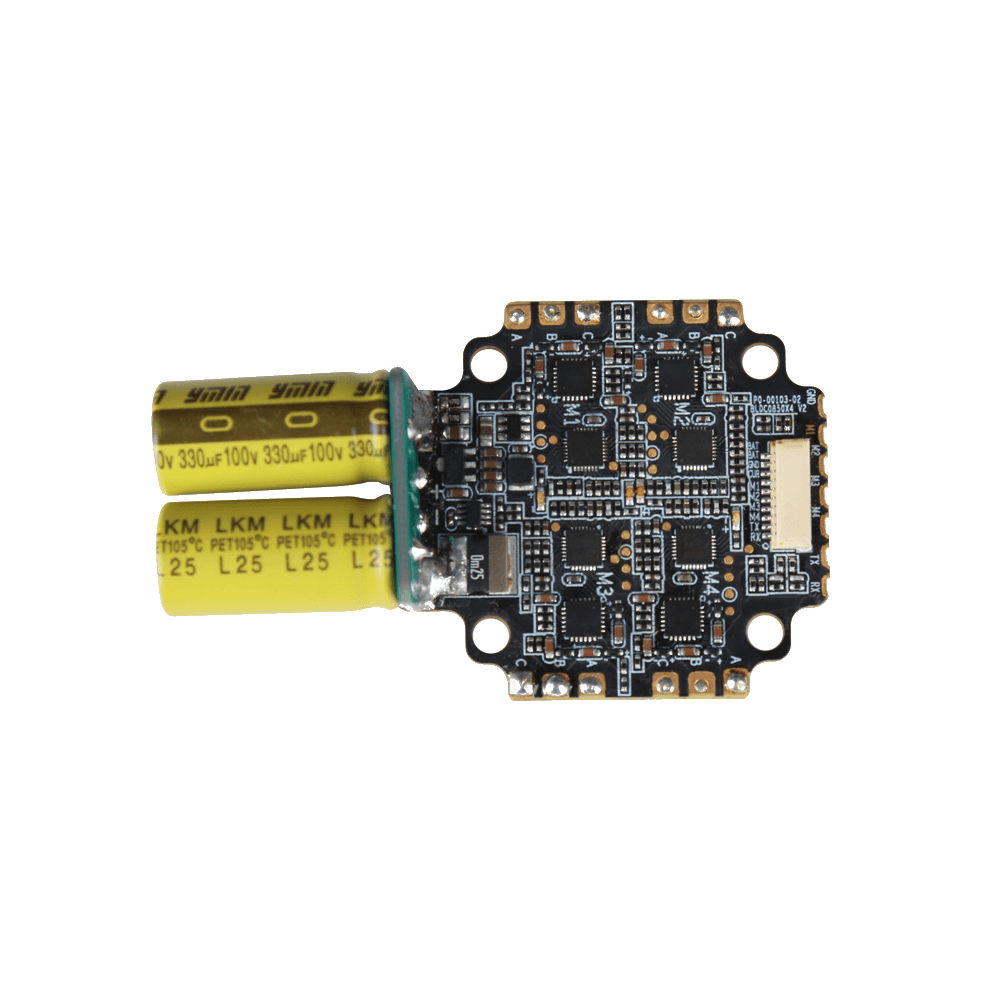

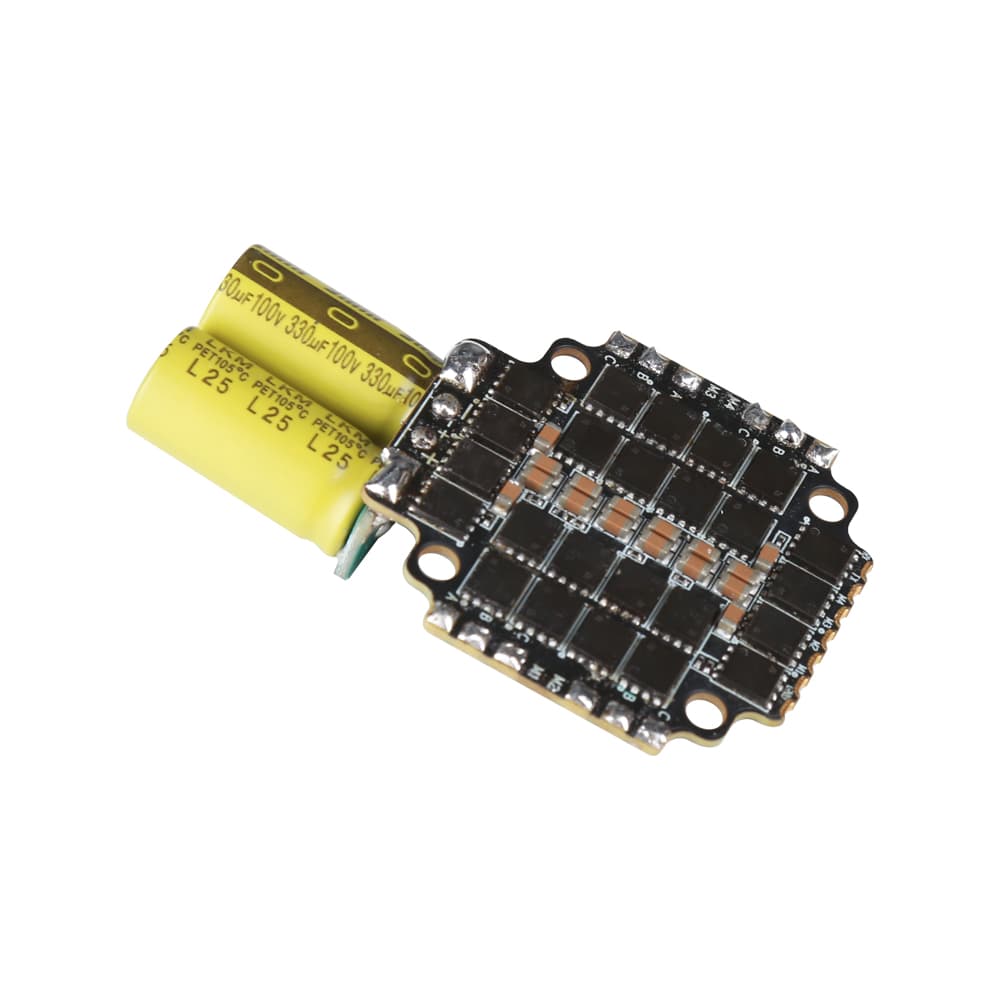

BD0870X4 4-in-1 BLDC square-wave ESC, 35V max, supports 5-10" props, 30.5mm mounting, onboard current sensor, bidirectional DShot & RPM filter
Voltage
3-8S LiPo
Cont.Current
80A*4 (持续) / 100A*4 (峰值)
Type
4合1
Recommended Models
7-10寸
Weight
27.9g
Features
3-8S LiPo / 35V
80A*4 cont. / 100A*4 peak
Dshot150/300/600 + PWM
Bidirectional DShot

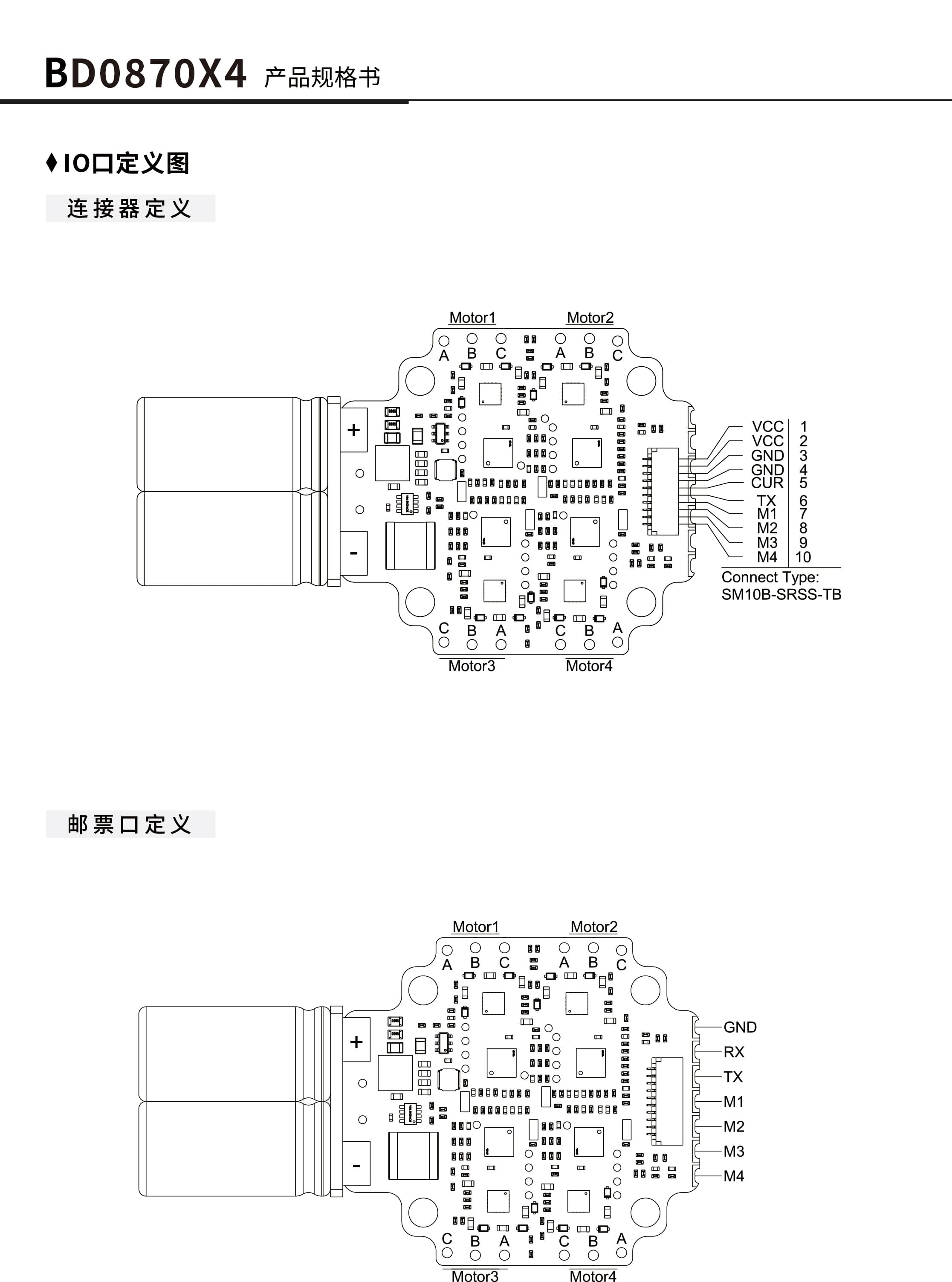

UART interface
Onboard current sensor
Stall/over-voltage/under-voltage/over-temp protection
6-layer 3Oz HDI PCB
Applications
FPV RacingMultirotor
