K6218
K6218

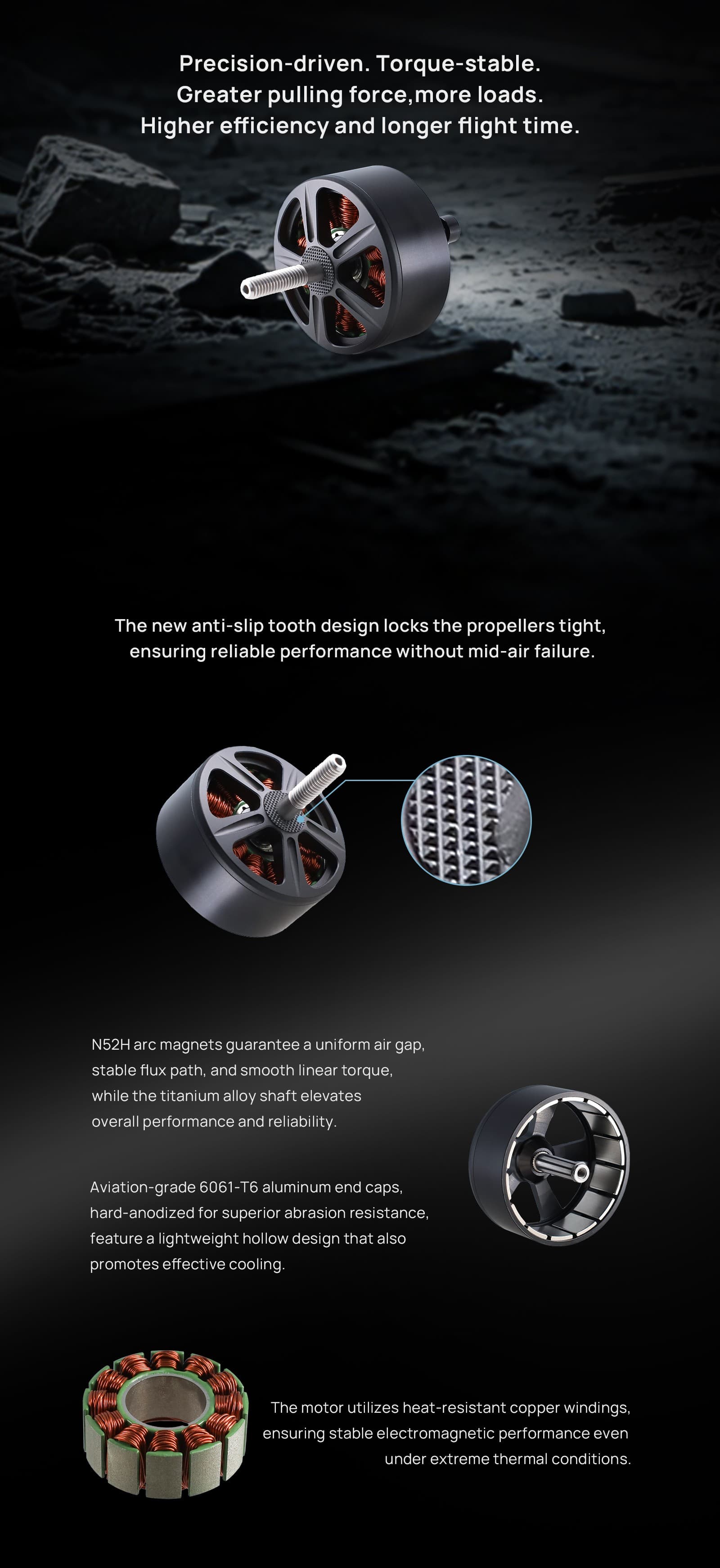

6218 brushless motor, KV 200KV, for 19/20/22inch propellers, max thrust -, weight 445.1±12g（With wire）.
KV
200KV KV
Weight
445.1±12g
Diameter
D69.5*39.5mm
Length
5±0.1mm
Features
Model: 6218
Motor Size: D69.5*39.5mm
Shaft-D: Ф8-0/-0.04mm
Shaft-L: 5±0.1mm
Wire Length: 600±5mm
Weight: 445.1±12g（With wire）
No Load Voltage: 20V
No load Current: 1.77±0.2A
No load Speed: 3876~4284RPM（200KV）
Internal resistance: 39.98mΩ±5%
Working Voltage: 12-14S（3.7-4.2V/S）
KV Rating: 200KV
Propeller: 19/20/22inch
Max Thrust: 12.5kg
Flight Weight: 20kg
Applications
FPV RacingFreestyleAerial Photography
