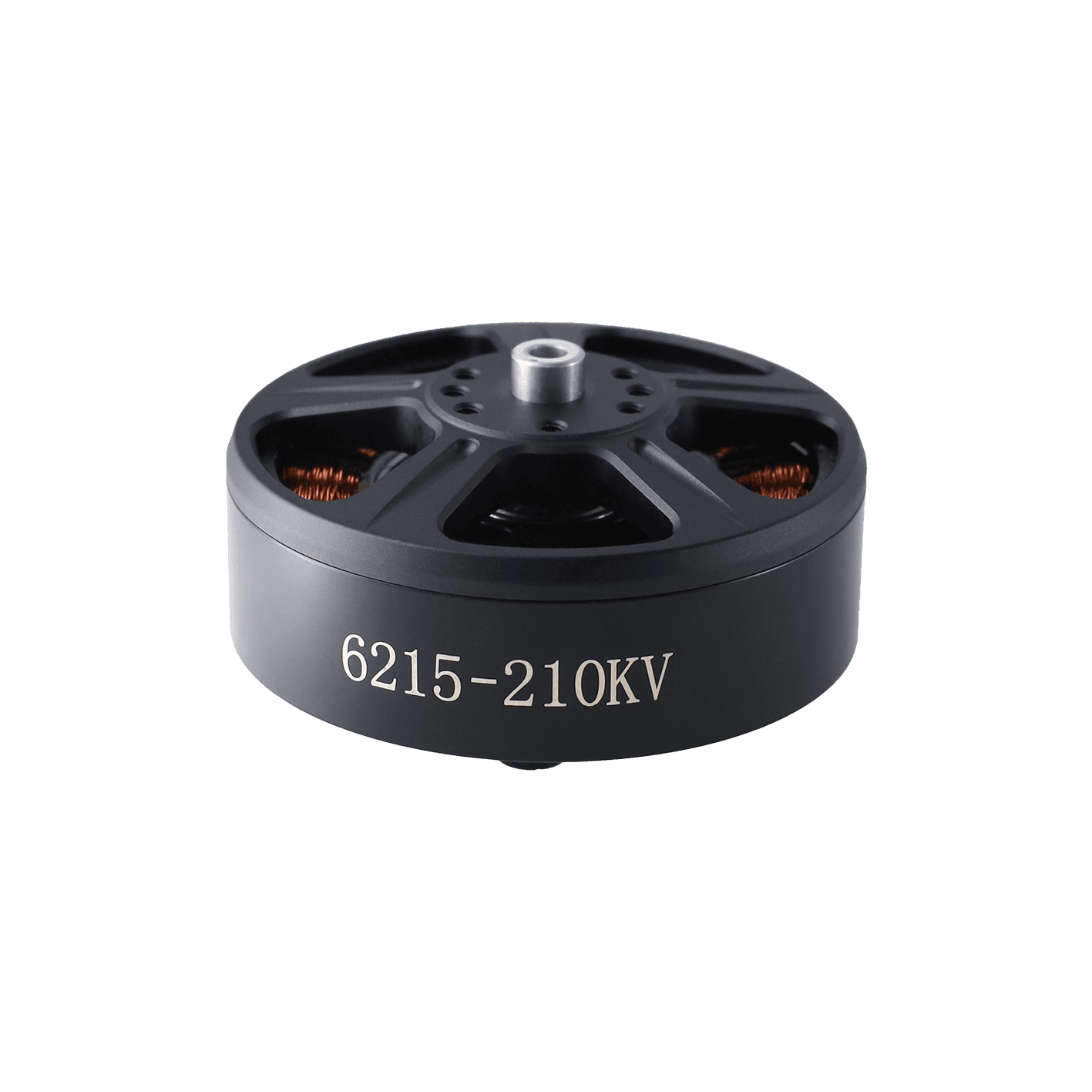

K6215
K6215
6215 brushless motor, KV 210KV, for 18/19/20inch propellers, max thrust -, weight 388±10g（With wire）.
KV
210KV KV
Weight
388±10g
Diameter
D69.5*36.5mm
Length
5±0.1mm
Features
Model: 6215
Motor Size: D69.5*36.5mm
Shaft-D: Ф8-0/-0.04mm
Shaft-L: 5±0.1mm
Wire Length: 600±5mm
Weight: 388±10g（With wire）
No Load Voltage: 20V
No load Current: 1.59±0.2A
No load Speed: 4028~4452RPM（210KV）
Internal resistance: 46.66mΩ±5%
Working Voltage: 12-14S（3.7-4.2V/S）
KV Rating: 210KV
Propeller: 18/19/20inch
Max Thrust: 12kg
Flight Weight: 18kg
Applications
FPV RacingFreestyleAerial Photography
