K4715
K4715

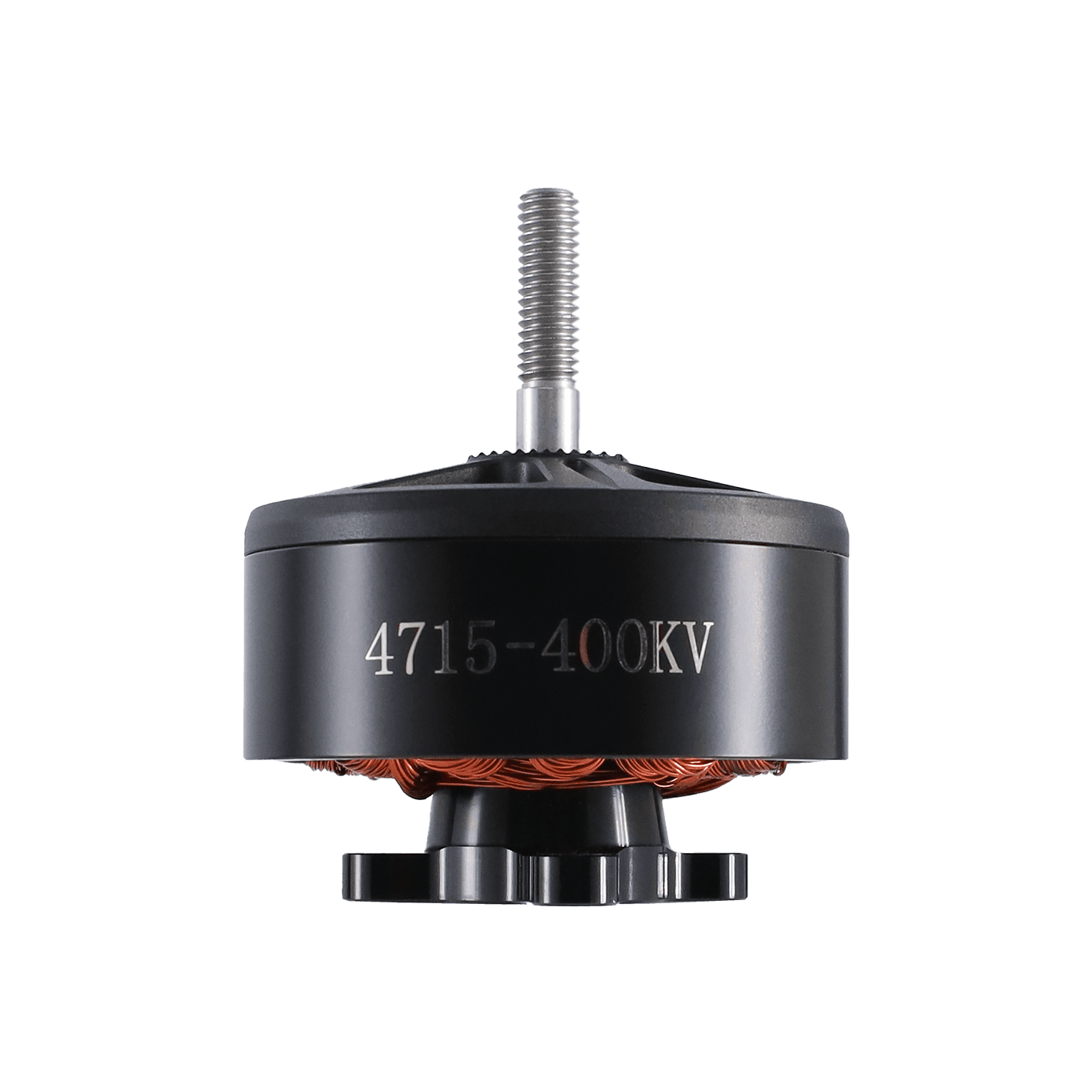

4715 brushless motor, KV 400KV, for 13/15inch propellers, max thrust -, weight 286±12g（With wire）.
KV
400KV KV
Weight
286±12g
Diameter
D56*41.15mm
Length
24.9±0.3mm
Features
Model: 4715
Motor Size: D56*41.15mm
Shaft-D: Ф6-0.02/-0.06mm
Shaft-L: 24.9±0.3mm
Wire Length: 405±5mm
Weight: 286±12g（With wire）
No Load Voltage: 10V
No load Current: 1.80±0.2A
No load Speed: 3800~4200RPM（400KV）
Internal resistance: 40.15mΩ±5%
Working Voltage: 8-12S（3.7-4.2V/S）
KV Rating: 400KV
Propeller: 13/15inch
Max Thrust: 7.8kg
Flight Weight: 11kg
Applications
FPV RacingFreestyleAerial Photography
