K4325
K4325

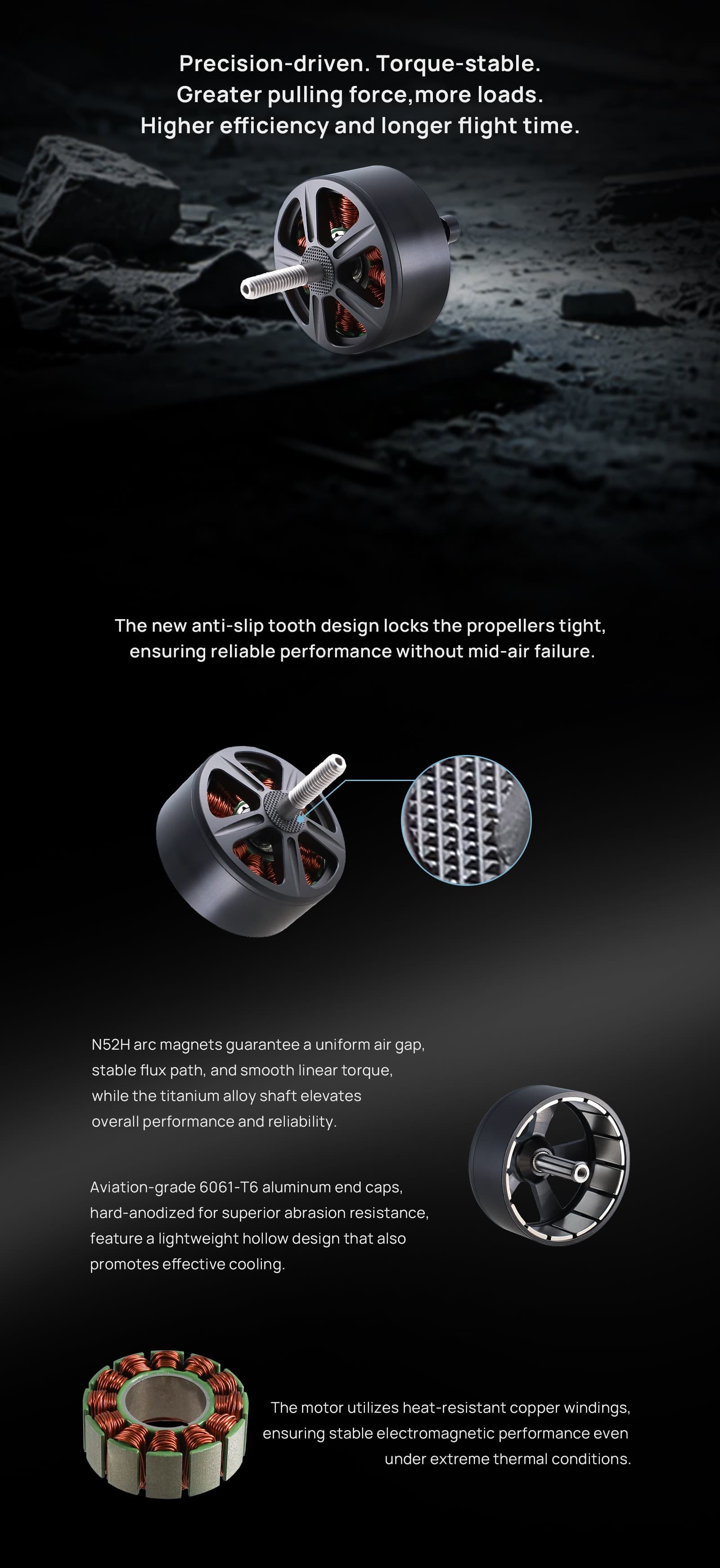

4325 brushless motor, KV 360KV, for 13/15inch propellers, max thrust -, weight 34.3±10g（With wire）.
KV
360KV KV
Weight
34.3±10g
Diameter
D50.5*49.6mm
Length
24.7±0.3mm
Features
Model: 4325
Motor Size: D50.5*49.6mm
Shaft-D: Ф6-0.02/-0.06mm
Shaft-L: 24.7±0.3mm
Wire Length: 250±5mm
Weight: 34.3±10g（With wire）
No Load Voltage: 10V
No load Current: 1.9±0.2A
No load Speed: 3410~3769RPM（360KV)
Internal resistance: 31.37mΩ ±5%
Working Voltage: 8-12S（3.7-4.2V/S）
KV Rating: 360KV
Propeller: 13/15inch
Max Thrust: 9kg
Flight Weight: 14k
Applications
FPV RacingFreestyleAerial Photography
