K4320
K4320

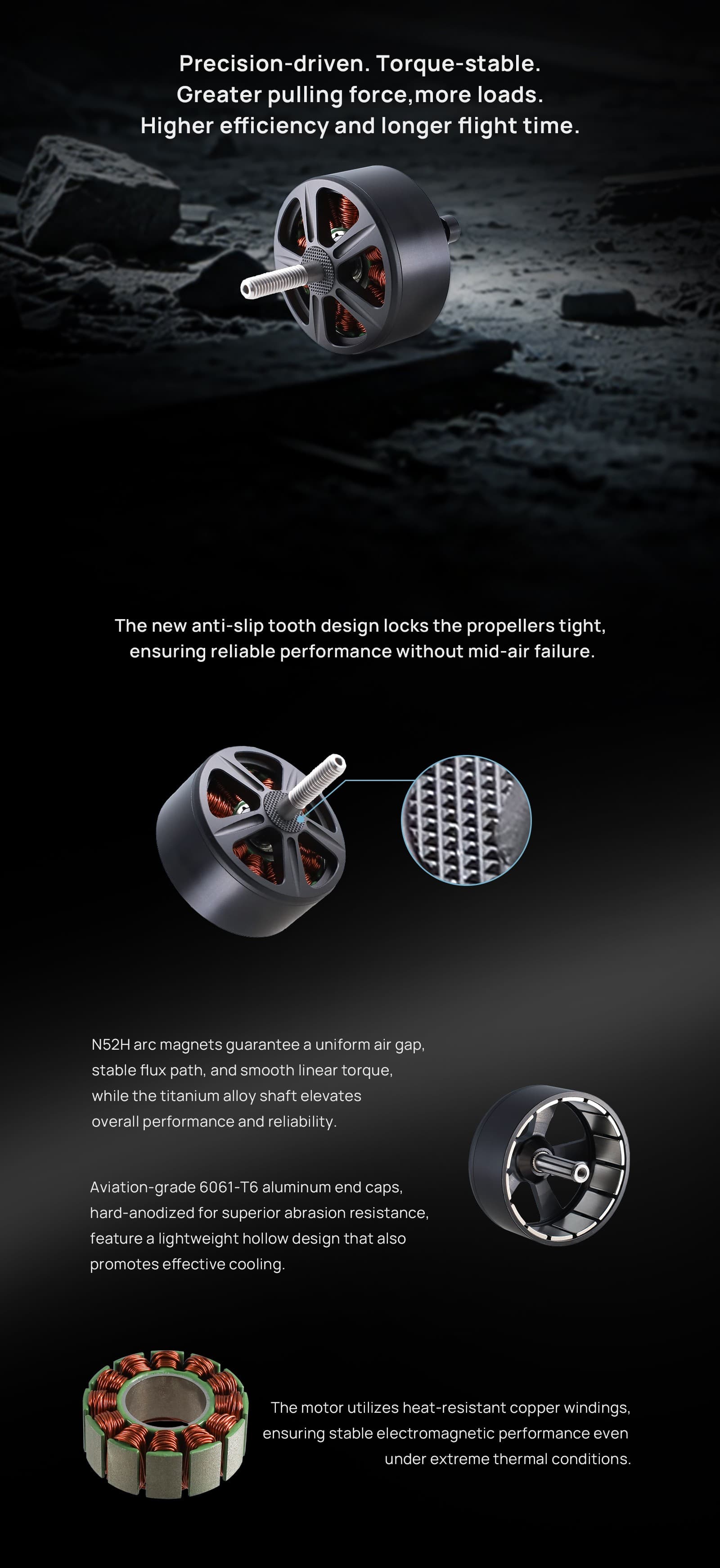

4320 brushless motor, KV 400KV, for 13/15inch propellers, max thrust -, weight 293.2±8g（With wire）.
KV
400KV KV
Weight
293.2±8g
Diameter
D50.5*44.6mm
Length
24.9±0.3mm
Features
Model: 4320
Motor Size: D50.5*44.6mm
Shaft-D: Ф6 -0.02/-0.06mm
Shaft-L: 24.9±0.3mm
Wire Length: 405±5mm
Weight: 293.2±8g（With wire）
No Load Voltage: 10V
No load Current: 1.60±0.2A
No load Speed: 3762~4158RPM（400KV）
Internal resistance: 38.79mΩ±5%
Working Voltage: 8-12S（3.7-4.2V/S）
KV Rating: 400KV
Propeller: 13/15inch
Max Thrust: 8kg
Flight Weight: 12kg
Applications
FPV RacingFreestyleAerial Photography
