K4315
K4315

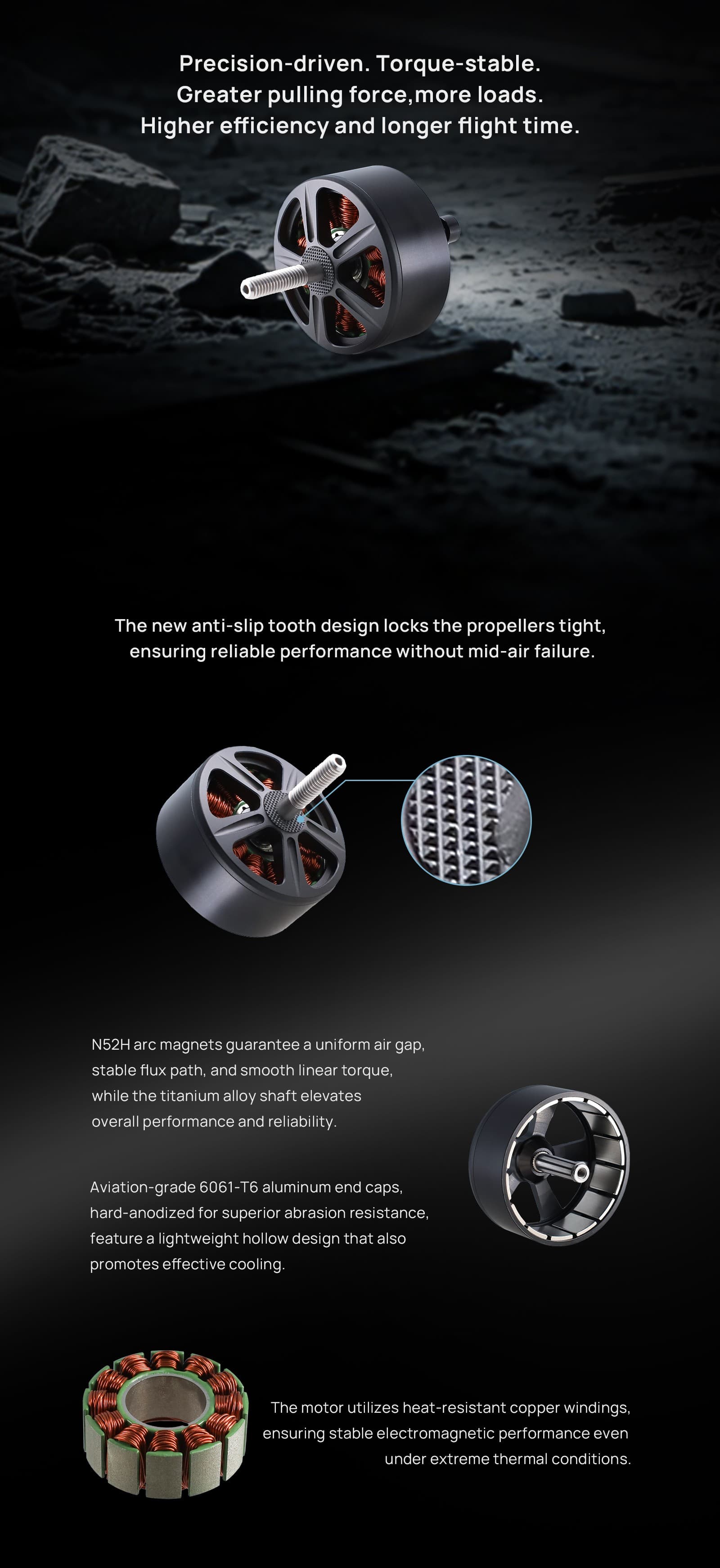

4315 brushless motor, KV 400KV, for 13/15inch propellers, max thrust -, weight 260.8±8g（With wire）.
KV
400KV KV
Weight
260.8±8g
Diameter
D50.5*39.6mm
Length
24.7±0.3mm
Features
Model: 4315
Motor Size: D50.5*39.6mm
Shaft-D: Ф6-0.02/-0.06mm
Shaft-L: 24.7±0.3mm
Wire Length: 220±5mm
Weight: 260.8±8g（With wire）
No Load Voltage: 10V
No load Current: 1.39~1.44A
No load Speed: 3828~4231RPM（400KV）
Internal resistance: 45.68mΩ ±5%
Working Voltage: 8-12S（3.7-4.2V/S）
KV Rating: 400KV
Propeller: 13/15inch
Max Thrust: 7kg
Flight Weight: 9 kg
Applications
FPV RacingFreestyleAerial Photography
