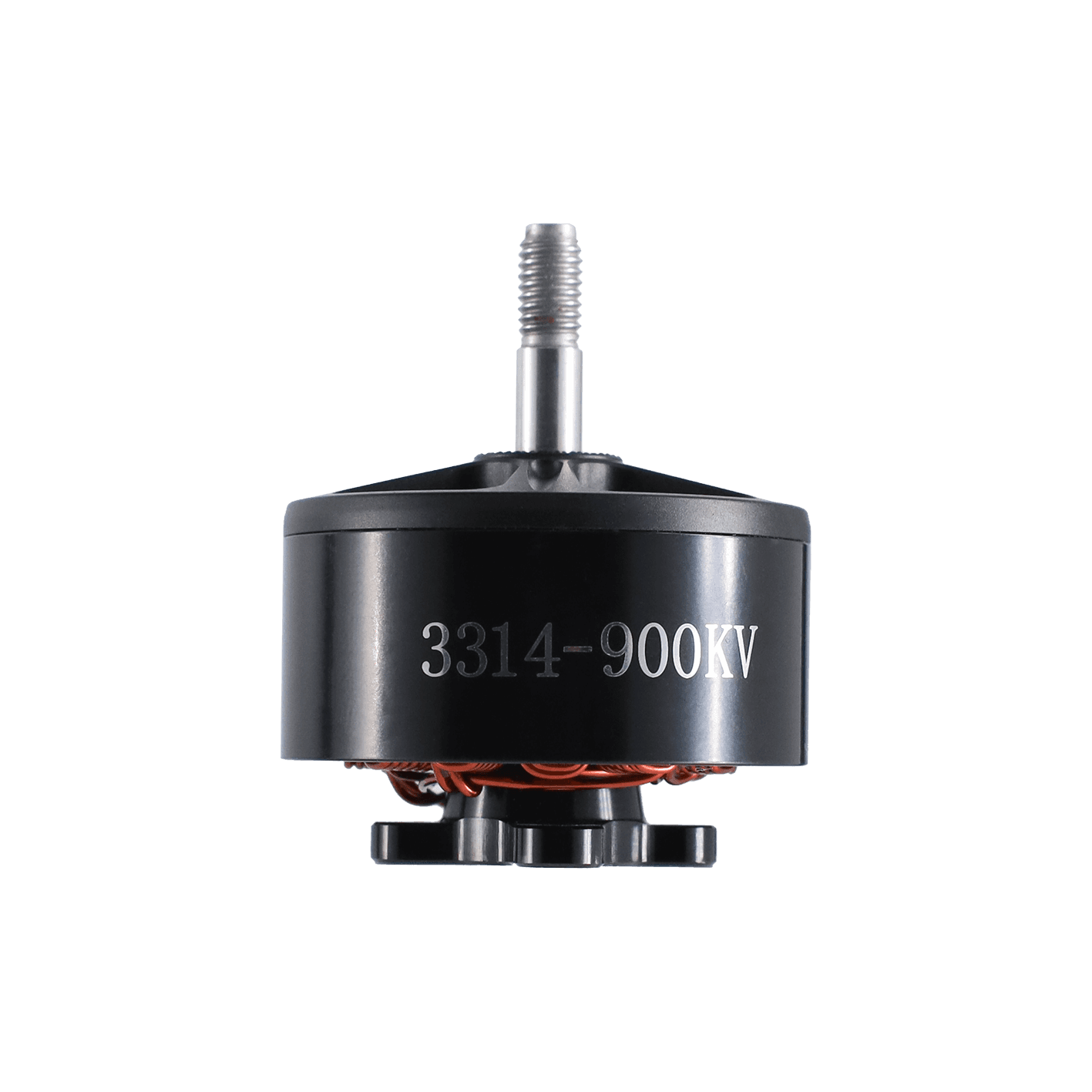

K3314
K3314
3314 brushless motor, KV 700/900KV, for 8/9/10inch propellers, max thrust -, weight 114.4±3g（With wire）.
KV
700/900KV KV
Weight
114.4±3g
Diameter
D38.6*29.8mm
Length
17±0.2mm
Features
Mode: 3314
Motor Size: D38.6*29.8mm
Shaft-D: Ф5 -0/-0.05mm
Shaft-L: 17±0.2mm
Wire Length: 400±5mm
Weight: 114.4±3g（With wire）
No Load Voltage: 10V
No load Current: 0.94±0.2A（700KV）/1.4±0.3A（900KV）
No load Speed: 7125~7875RPM（700KV） 8550~9450RPM（900KV）
Internal resistance: 61.65mΩ±5% / 47.5mΩ±5%
Working Voltage: 6-8S（3.7-4.2V/S）
KV Rating: 700/900KV
Propeller: 8/9/10inch
Max Thrust: 4.5kg
Flight Weight: 6kg
Applications
FPV RacingFreestyleAerial Photography
