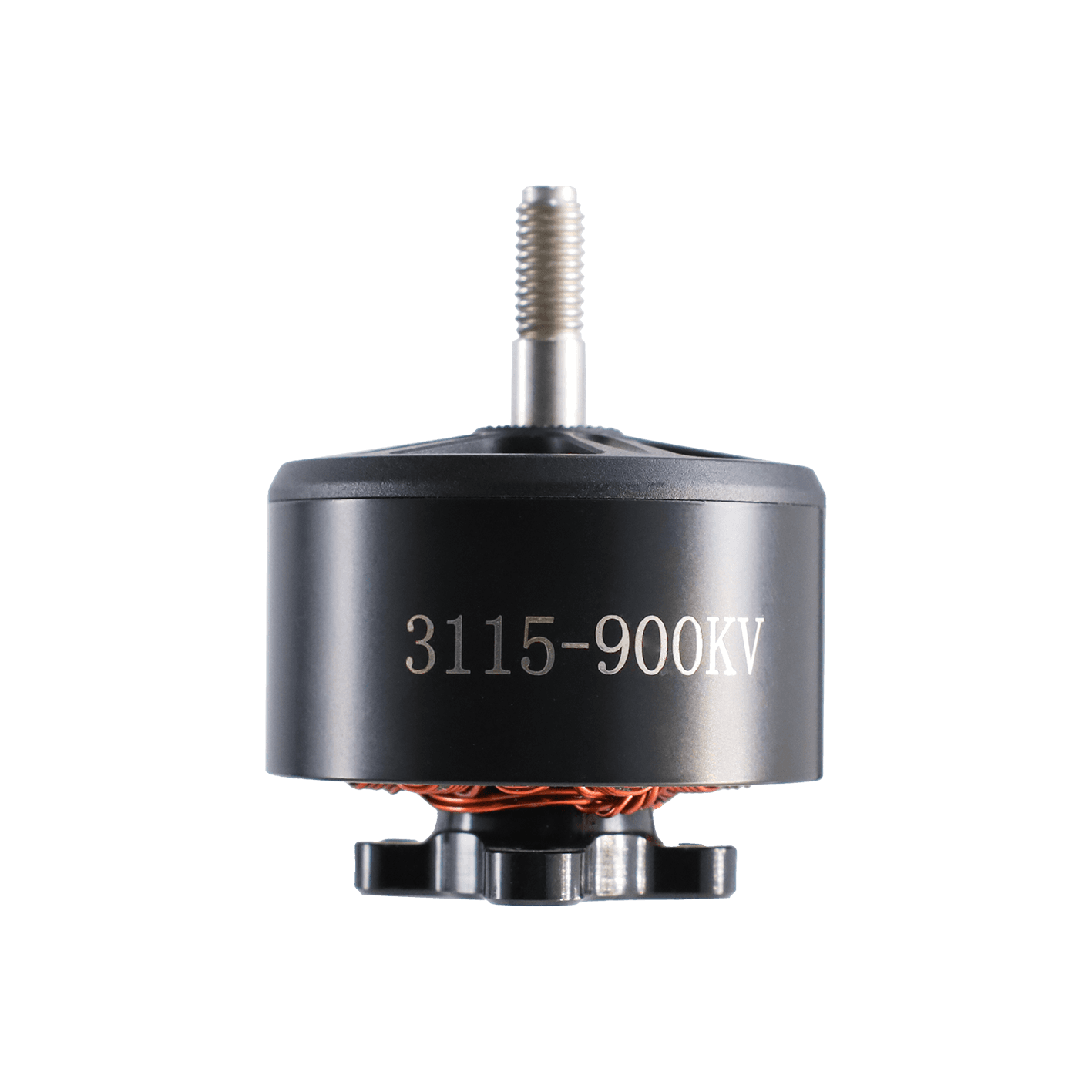

K3115
K3115
3115 brushless motor, KV 640/900KV, for 10/11inch propellers, max thrust -, weight 102.9±3g（With wire）.
KV
640/900KV KV
Weight
102.9±3g
Diameter
D36.85*30.8mm
Length
16±0.2mm
Features
Model: 3115
Motor Size: D36.85*30.8mm
Shaft-D: Ф5 -0/-0.02mm
Shaft-L: 16±0.2mm
Wire Length: 200±5mm
Weight: 102.9±3g（With wire）
No Load Voltage: 10V
No load Current: 0.84±0.2A（640KV）/1.7±0.3A（900KV）
No load Speed: 6080~6720RPM（640KV） 8550~9450RPM（900KV）
Internal resistance: 92mΩ±5% / 50.5mΩ±5%
Working Voltage: 6-8S（3.7-4.2V/S）
KV Rating: 640/900KV
Propeller: 10/11inch
Max Thrust: 4.2kg
Flight Weight: 5.5kg
Applications
FPV RacingFreestyleAerial Photography
