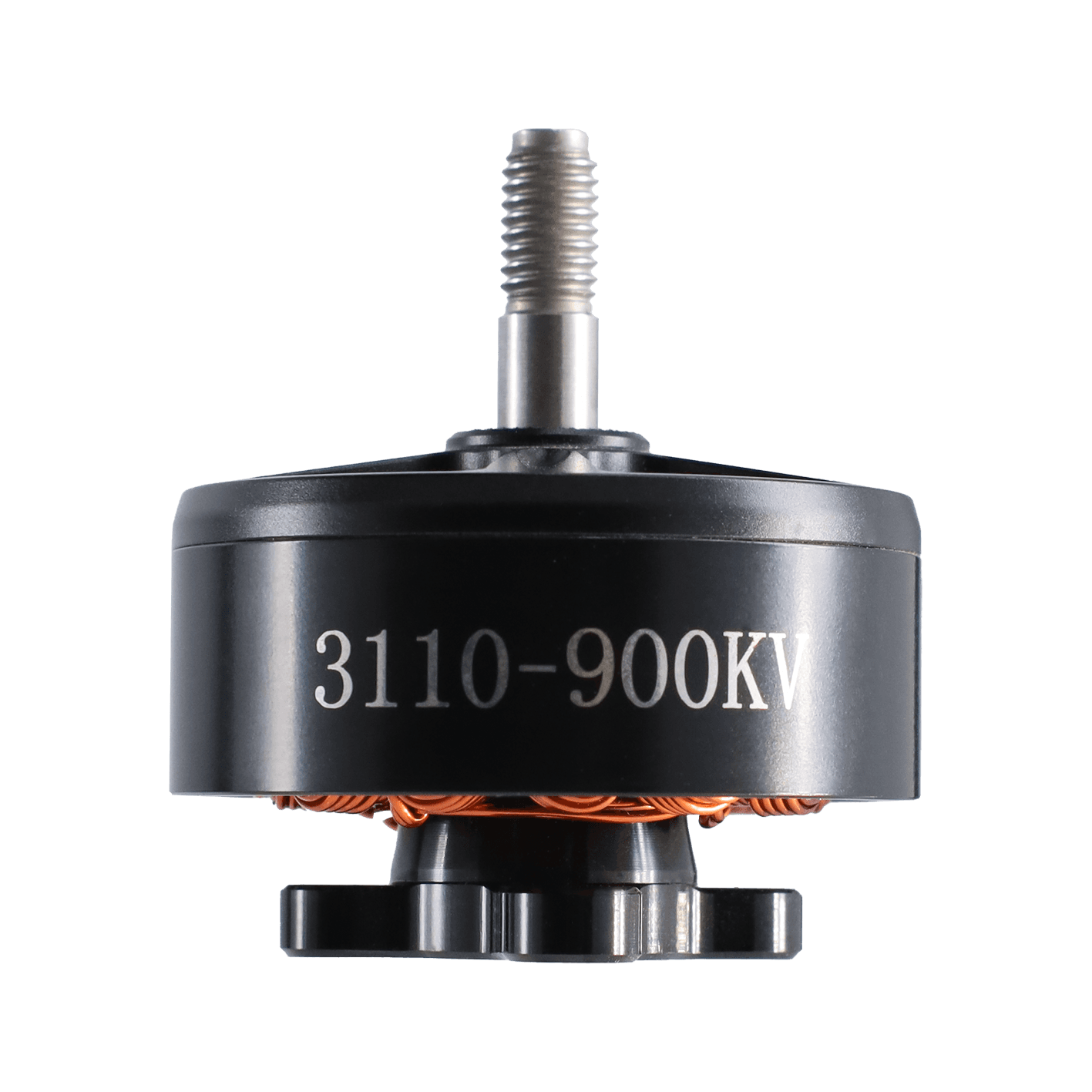

K3110
K3110
3110 brushless motor, KV 900KV, for 8inch propellers, max thrust -, weight 74±2g（With wire）.
KV
900KV KV
Weight
74±2g
Diameter
D36.4*25.1mm
Length
15.3±0.2mm
Features
Model: 3110
Motor Size: D36.4*25.1mm
Shaft-D: Ф5 -0/-0.02mm
Shaft-L: 15.3±0.2mm
Wire Length: 200±5mm
Weight: 74±2g（With wire）
No Load Voltage: 10V
No load Current: 1.06±0.3A
No load Speed: 8550~9450RPM（900KV）
Internal resistance: 78.7mΩ±5%
Working Voltage: 6-8S（3.7-4.2V/S）
KV Rating: 900KV
Propeller: 8inch
Max Thrust: 3kg
Flight Weight: 4kg
Applications
FPV RacingFreestyleAerial Photography
