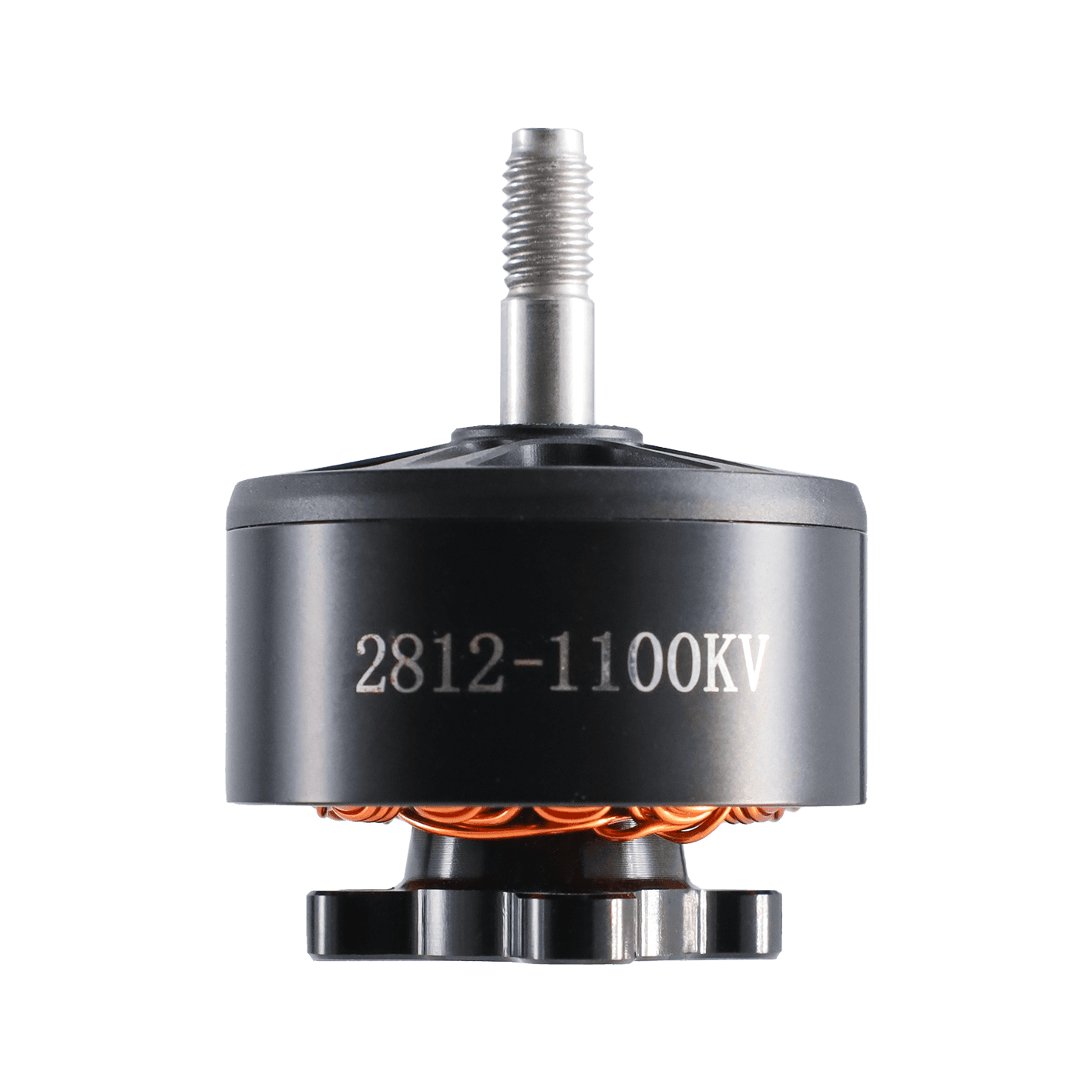

K2812
K2812
2812 brushless motor, KV 900/1150/1250KV, for 8/9inch propellers, max thrust -, weight 74.8±2g（With wire）.
KV
900/1150/1250KV KV
Weight
74.8±2g
Diameter
D33.2*27.3mm
Length
15.5±0.2mm
Features
Model: 2812
Motor Size: D33.2*27.3mm
Shaft-D: Ф5 -0/-0.02mm
Shaft-L: 15.5±0.2mm
Wire Length: 200±5mm/260±5mm/260±5mm
Weight: 74.8±2g（With wire）
No Load Voltage: 10V
No load Current: 1±0.2A（900/1150KV）/1.6±0.2A（1250KV）
No load Speed: 8550~9450RPM（900KV) 10925~12075RPM（1150KV） 11875~13125RPM（1250KV）
Internal resistance: 44.5mΩ±5% / 57mΩ±5% / 43.5mΩ±5%
Working Voltage: 4-6S（3.7-4.2V/S）
KV Rating: 900/1150/1250KV
Propeller: 8/9inch
Max Thrust: 3.5kg
Flight Weight: 5kg
Applications
FPV RacingFreestyleAerial Photography
