K2810
K2810

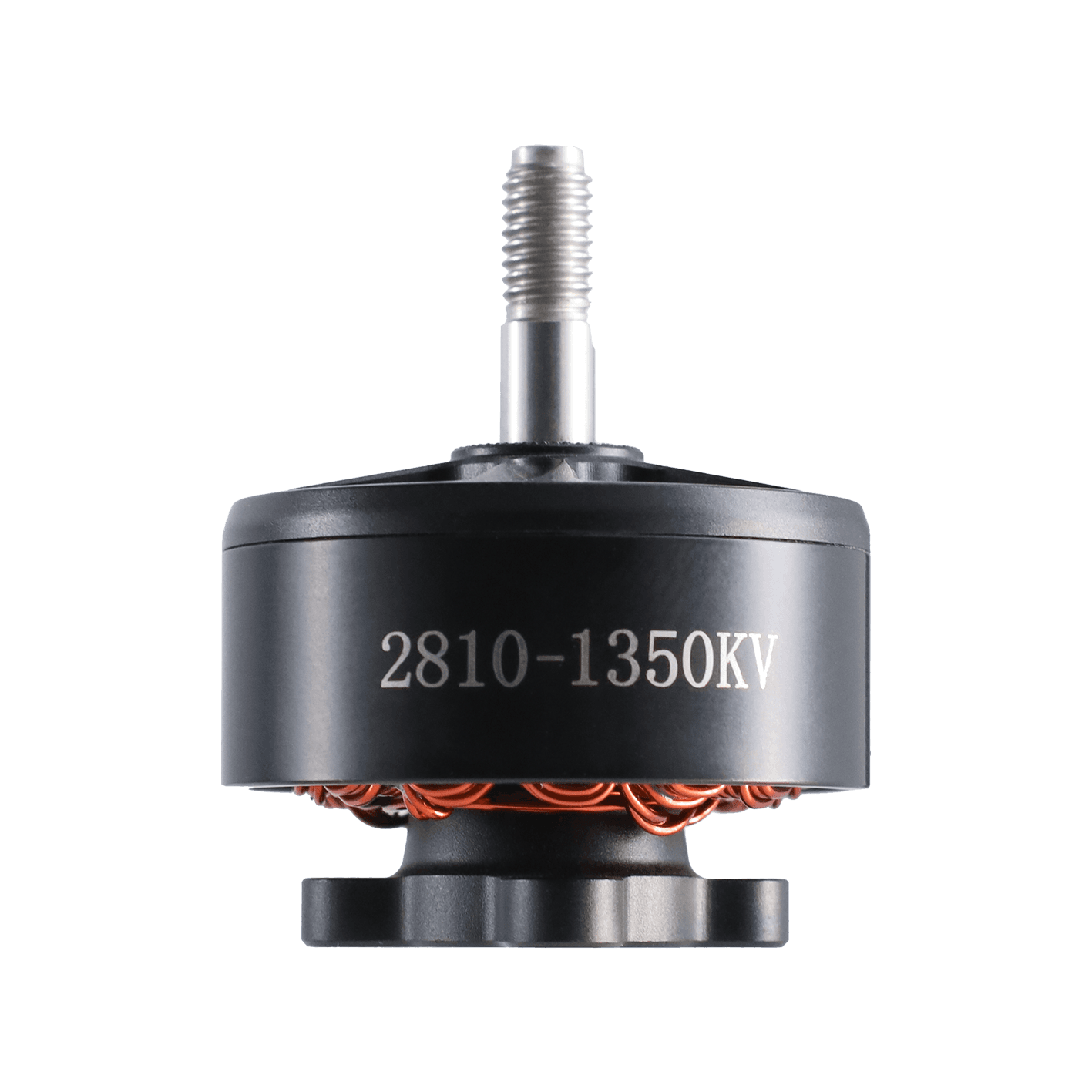

2810 brushless motor, KV 1350KV, for 7/8inch propellers, max thrust -, weight 65.8±2g（With wire）.
KV
1350KV KV
Weight
65.8±2g
Diameter
D33.2*25.3mm
Length
15.5±0.2mm
Features
Model: 2810
Motor Size: D33.2*25.3mm
Shaft-D: Ф5 -0/-0.02mm
Shaft-L: 15.5±0.2mm
Wire Length: 200±5mm
Weight: 65.8±2g（With wire）
No Load Voltage: 10V
No load Current: 1.75±0.3A
No load Speed: 12828~14175RPM（1350KV）
Internal resistance: 44.5mΩ±5%
Working Voltage: 4-6S（3.7-4.2V/S）
KV Rating: 1350KV
Propeller: 7/8inch
Max Thrust: 3kg
Flight Weight: 4kg
Applications
FPV RacingFreestyleAerial Photography
